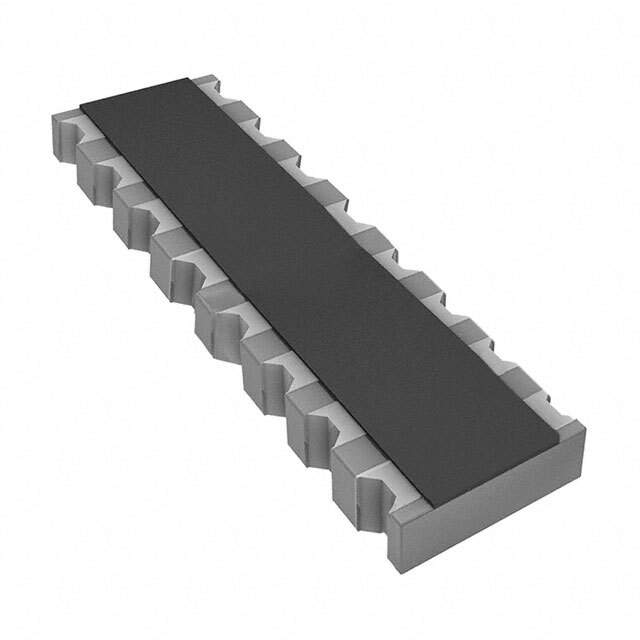

742C163470JP Real Image
Same model may have multiple batches, images only for reference.

742C163470JP

Part No 742C163470JP
Manufacturer CTS Resistor Products
Catalog Resistor Networks, Arrays
Description RES ARRAY 8 RES 47 OHM 2506 / 47 Ohm ±5% 62.5mW Power Per Element Isolated 8 Resistor Network/Array ±200ppm/°C 2506, Concave, Long Side Terminals
Datasheet
742C163470JP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Resistor Networks, Arrays
Mfr CTS Resistor Products
Series 742
Package Tape & Reel
Circuit Type Isolated
Resistance (Ohms) 47
Tolerance ±5%
Number of Resistors 8
Number of Pins 16
Power Per Element 62.5mW
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 2506, Concave, Long Side Terminals
Dimension 0.252" L x 0.063" W (6.40mm x 1.60mm)
Height - Seated (Max) 0.028" (0.70mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0020
Other Names 742C163470JPTR,742C163470JPCT,742C163470JPDKR,Q4216370
Standard Package 4,000
Win Source Part Number 1135358-742C163470JP
Ultra Librarian 3D Model Ultra Librarian 742C163470JP CAD Model

Description

The 1135358-742C163470JP is a resistor network/array manufactured by CTS Resistor Products.

  • Win Source Part Number: 1135358
  • Number of Resistors: 8
  • Power Per Element: 62.5mW
  • Circuit Type: isolated
  • Tolerance: ±5%
  • Ideal for: various electronic devices such as computers and telecommunication equipment
  • Temperature Range: -55°C to 125°C
  • Temperature Coefficient: ±200ppm/°C
