CST306-1A

Part No CST306-1A
Manufacturer Triad Magnetics
Catalog Current Sense Transformers
Description CURR SENSE XFMR 35A T/H / 35 A Current Sense Transformer 20kHz ~ 200kHz 340mOhm Max 3.5 mH Through Hole
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Current Sense Transformers
Mfr Triad Magnetics
Series CST
Package Bulk
Frequency Range 20kHz ~ 200kHz
Type Non-Invasive (Solid Core)
Current Rating (Amps) 35 A
Inductance 3.5 mH
ET (Volt-Time) 500VµS
DC Resistance (DCR) 340mOhm Max
Mounting Type Through Hole
Size / Dimension 0.690" L x 0.385" W (17.53mm x 9.78mm)
Height - Seated (Max) 0.915" (23.24mm)
Termination Style PC Pin
Standard Package 1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4035
Win Source Part Number 1341421-CST306-1A
Ultra Librarian 3D Model Ultra Librarian CST306-1A CAD Model

Description

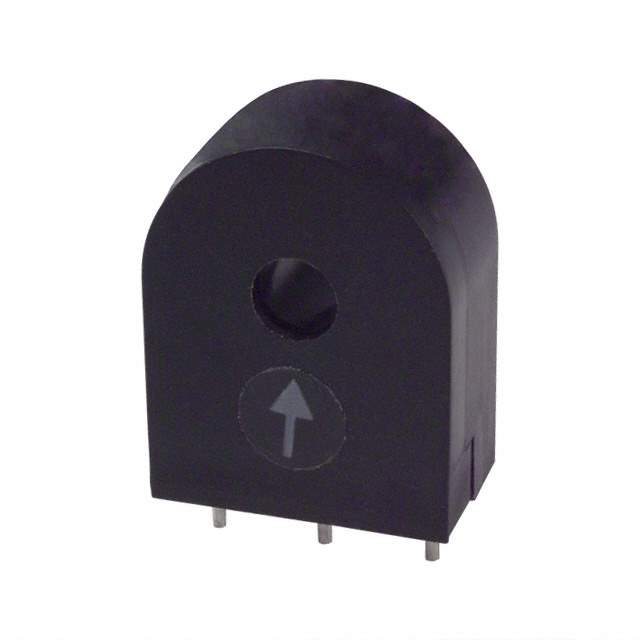

The CST306-1A transformer from Triad Magnetics is a current sense transformer.

  • Type: Non-Invasive Solid Core
  • Size (Length): 0.690 inches
  • Size (Width): 0.385 inches
  • Inductance: 3.5 mH
  • Maximum DC Resistance: 340mOhm
  • Frequency Range: 20kHz to 200kHz
  • Current Rating: 35 A
