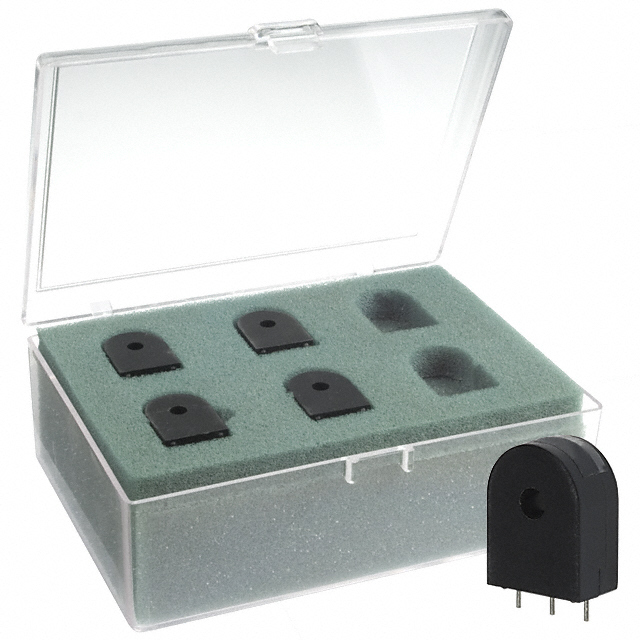

CST-1025

Part No CST-1025
Manufacturer Triad Magnetics
Catalog Current Sense Transformers
Description CURR SENSE XFMR 25A T/H
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Frequency Range 50/60Hz
Type Non-Invasive (Solid Core)
Current Rating (Amps) 25 A
Current Ratio 1000:1
DC Resistance (DCR) 46Ohm
Mounting Type Through Hole
Size / Dimension 1.189" L x 0.563" W (30.20mm x 14.30mm)
Height - Seated (Max) 1.189" (30.20mm)
Termination Style PC Pin
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1545068-CST-1025
Ultra Librarian 3D Model Ultra Librarian CST-1025 CAD Model
