Same model may have multiple batches, images only for reference.

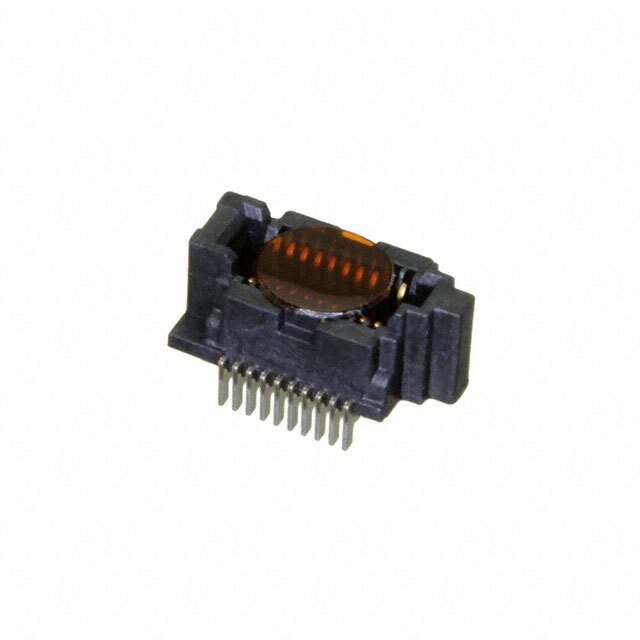

SS4-10-3.50-L-D-K-TR Real Image
Same model may have multiple batches, images only for reference.

SS4-10-3.50-L-D-K-TR

Part No SS4-10-3.50-L-D-K-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SS4-10-3.50-L-D-K-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series Razor Beam™ SS4
Package Tape & Reel
Connector Type Socket, Outer Shroud Contacts
Number of Positions 20
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Pick and Place
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Mated Stacking Heights 4.5mm, 5.5mm, 6mm
Height Above Board 0.132" (3.35mm)
Base Product Number SS4-10
Other Names SAM13255TR,SAM13255DKR,SS4-10-3.50-L-D-K-FR,SS4-10-3.50-L-D-K-TR,SAM13255CT
Standard Package 1,025
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293973-SS4-10-3.50-L-D-K-TR
Ultra Librarian 3D Model Ultra Librarian SS4-10-3.50-L-D-K-TR CAD Model

Description

The Razor Beam™ SS4 is a socket, outer shroud contacts connector type that features 20 positions and a pitch of 0.016” (0.40mm).

  • Connector Type: Socket, outer shroud contacts
  • Positions: 20
  • Pitch: 0.016” (0.40mm)
  • Features: Pick and place
  • Rows: Two
  • Contact Finish: Gold
  • Contact Finish Thickness: 10.0μin (0.25μm)
  • Mated Stacking Heights: 4.5mm, 5.5mm, and 6mm
  • Height Above Board: 0.132” (3.35mm)
  • Mounting Method: SMD (SMT)
  • Package: Tape and reel
  • REACH: Unaffected
  • ECCN: EAR99
