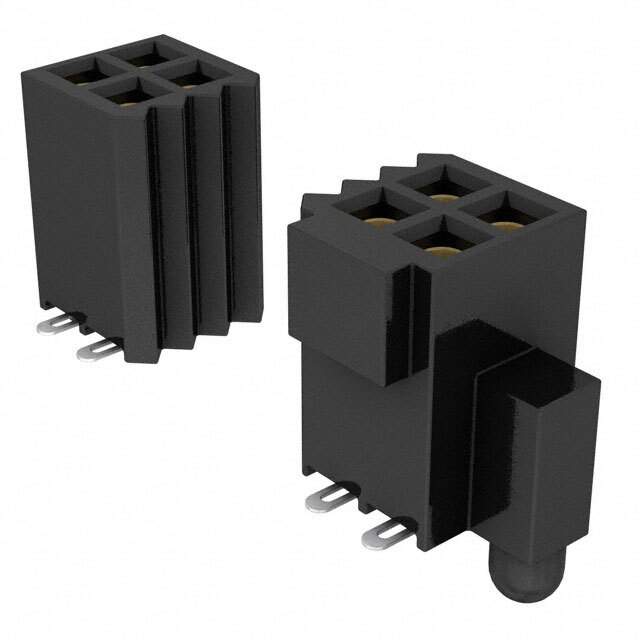

Same model may have multiple batches, images only for reference.

SFC-110-T2-F-D-A-K-TR

Name: SFC-110-T2-F-D-A-K-TR
Brand: Samtec Inc.
SKU: 1287935
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SFC-110-T2-F-D-A-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SFC-110-T2-F-D-A-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SFC
Package	Tape & Reel
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	20
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00µin (0.076µm)
Insulation Color	Black
Insulation Height	0.180" (4.57mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Tin
Features	Board Guide, Pick and Place
Current Rating (Amps)	3.1A per Contact
Voltage Rating	350VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SFC-110
Other Names	SFC-110-T2-F-D-A-K-TR,SAM14481CT,SAM14481TR,SAM14481DKR
Standard Package	725
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1287935-SFC-110-T2-F-D-A-K-TR
Ultra Librarian 3D Model	Ultra Librarian SFC-110-T2-F-D-A-K-TR CAD Model

Alternative Products

Description

The Tiger Eye™ SFC series from Samtec Inc. offers a reliable solution for rectangular connectors.

Connector Type: SFC-110-T2-F-D-A-K-TR Receptacle
Fastening Type: Push-Pull
Applications: Board-to-board or cable
Pitch: 0.050" (1.27mm)
Voltage Rating: 350VAC
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Black
Current Rating: 3.1A per contact
Operating Temperature Range: -55°C to 125°C
Packaging: Tape & Reel
Standard Package: 725 units
