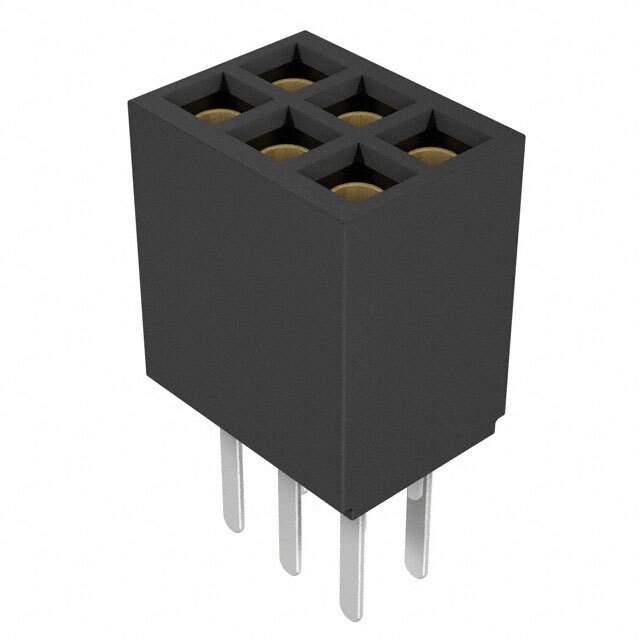

SFMC-103-L3-F-D

Name: SFMC-103-L3-F-D
Brand: Samtec Inc.
SKU: 1286725
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SFMC-103-L3-F-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SFMC-103-L3-F-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SFMC
Package	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	6
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00µin (0.076µm)
Insulation Color	Black
Insulation Height	0.180" (4.57mm)
Contact Length - Post	0.075" (1.91mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	2.9A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Base Product Number	SFMC-103
Standard Package	1
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1286725-SFMC-103-L3-F-D
Ultra Librarian 3D Model	Ultra Librarian SFMC-103-L3-F-D CAD Model

Alternative Products

Description

Samtec Inc.'s SFMC-103-L3-F-D Tiger Eye™ SFMC connector is a receptacle with six positions and two rows.

Positions: 6
Rows: 2
Pitch: 0.050" (1.27mm)
Contact Material: Beryllium Copper
Current Rating: 2.9A per contact
Mounting Type: Through-Hole
Operating Temperature: -55°C to 125°C
ECCN: EAR99
