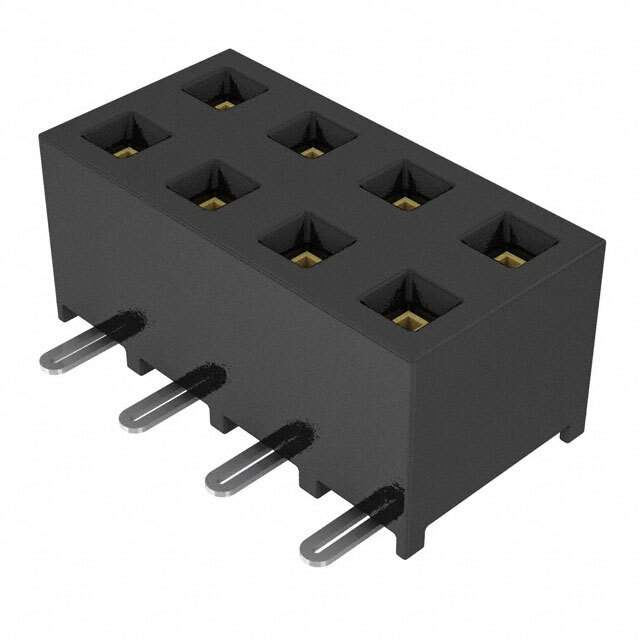

Same model may have multiple batches, images only for reference.

SMM-104-02-S-D-P-TR

Name: SMM-104-02-S-D-P-TR
Brand: Samtec Inc.
SKU: 813279
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SMM-104-02-S-D-P-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 8POS 0.079 GOLD SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Samtec Inc.
Packaging	Reel
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	8
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting Style	SMD
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0μin (0.76μm)
Insulation Color	Black
Insulation Height	0.140" (3.56mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Features	Pick and Place
Current Rating (Amps)	3.2A per Contact
Voltage Rating	350VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Manufacturer Pack Quantity	700
MSL Level	1 (Unlimited)
Popularity	Low
Supply and Demand Status	Limited
Win Source Part Number	813282-SMM-104-02-S-D-P-TR
Ultra Librarian 3D Model	Ultra Librarian SMM-104-02-S-D-P-TR CAD Model

Alternative Products

Description

The SMM-104-02-S-D-P-TR is a board-to-board or cable connector manufactured by Samtec Inc.

Positions: 8
Mounting: SMD
Technology: Pick and Place
Connector Type: Receptacle
Contact Material: Beryllium Copper
Contact Finish (Mating): Gold
Contact Finish (Post): Tin
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Black
Pitch: 0.079 inches (2.00mm)
Row Spacing: 0.079 inches (2.00mm)
Insulation Height: 0.140 inches (3.56mm)
Contact Shape: Square
Voltage Rating: 350VAC
Current Rating: 3.2A per contact
Supply and Demand Status: Limited
Manufacturer Pack Quantity: 700
MSL Level: 1 (unlimited)
