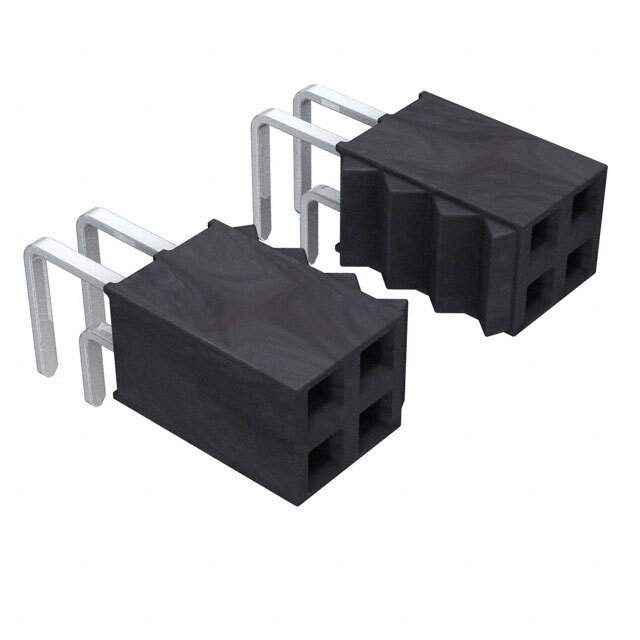

Same model may have multiple batches, images only for reference.

SSW-107-02-F-D-RA

Name: SSW-107-02-F-D-RA
Brand: Samtec Inc.
SKU: 1288489
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SSW-107-02-F-D-RA
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SSW-107-02-F-D-RA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSW
Package	Bulk
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	14
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00µin (0.076µm)
Insulation Color	Black
Insulation Height	0.195" (4.95mm)
Contact Length - Post	0.100" (2.54mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	4.7A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SSW-107
Other Names	SSW-107-02-F-D-RA,SAM11942
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1288489-SSW-107-02-F-D-RA
Ultra Librarian 3D Model	Ultra Librarian SSW-107-02-F-D-RA CAD Model

Alternative Products

Description

The SSW connector is a rectangular female socket that features a right angle through hole mounting type for easy and secure installation.

Mounting Type: Right Angle Through Hole
Positions: 14
Color: Black
Material: Phosphor Bronze
Termination: Solder
Pitch: 0.100" (2.54mm)
Applications: Board to Board or Cable
Contact Finish: Gold
Thickness: 3.00μin (0.076μm)
Temperature Range: -55°C ~ 125°C
Current Rating: 4.7A per Contact
Manufacturer: Samtec Inc.
Series: SSW
