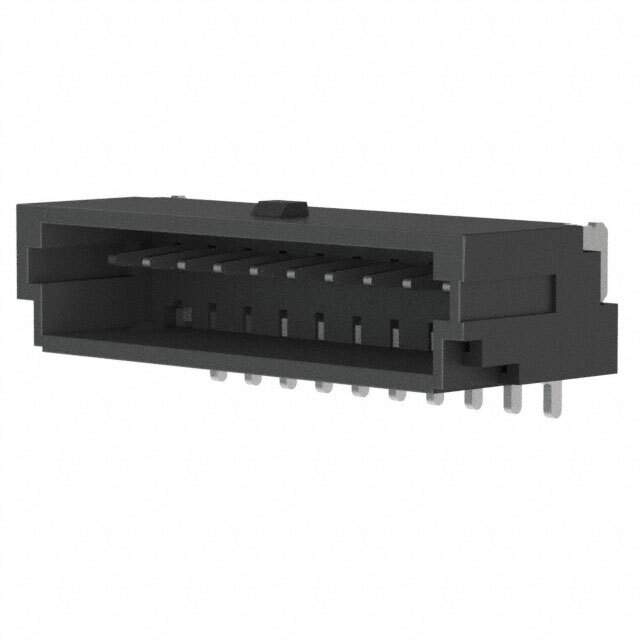

Same model may have multiple batches, images only for reference.

T1M-10-T-S-V-K-TR

Name: T1M-10-T-S-V-K-TR
Brand: Samtec Inc.
SKU: 351238
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	T1M-10-T-S-V-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	T1M 1MM TERMINAL STRIP
Datasheet	T1M-10-T-S-V-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Samtec Inc.
Packaging	Reel - TR
Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.039" (1.00mm)
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Locking Ramp
Insulation Height	0.167" (4.25mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Pick and Place
Temperature Range - Operating	-55°C to 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating	3.3A per Contact
Win Source Part Number	351238-T1M-10-T-S-V-K-TR
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian T1M-10-T-S-V-K-TR CAD Model

Alternative Products

Description

The Samtec Inc. Header Connector is a board-to-cable/wire style connector that is perfect for various electronic applications.

Manufacturer: Samtec Inc.
Product Name: Header Connector
Style: Board-to-cable/wire
Popularity: Medium
Feature: Shrouded with four walls
Design: Locking ramp
Voltage Rating: -
Current Rating: 3.3A per contact
Insulation Material: Liquid crystal polymer (LCP)
