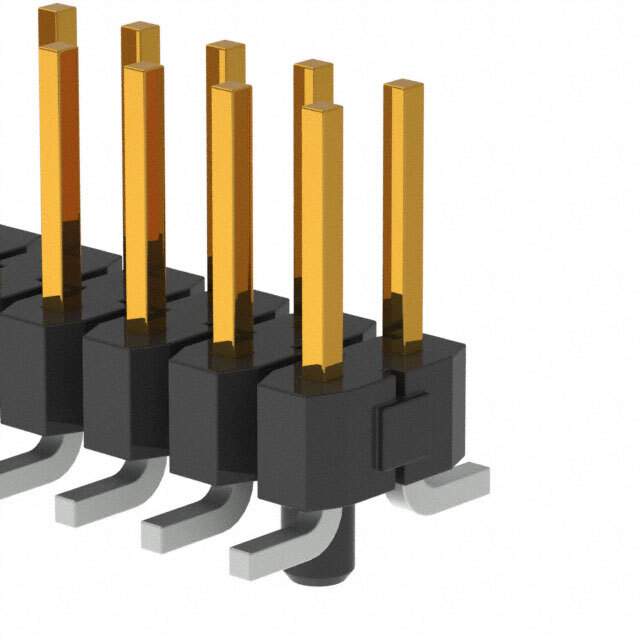

Same model may have multiple batches, images only for reference.

TSM-120-01-S-DV-A-022

Name: TSM-120-01-S-DV-A-022
Brand: Samtec Inc.
SKU: 1175499
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TSM-120-01-S-DV-A-022
Manufacturer	Samtec Inc.
Catalog	Circular Connectors - Housings
Description	CONN HEADER SMD 40POS 2.54MM / Connector Header Surface Mount 40 position 0.100" (2.54mm)
Datasheet	TSM-120-01-S-DV-A-022 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	TSM
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	40
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	39
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Board Guide
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Base Product Number	TSM-120
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	1
Win Source Part Number	1175499-TSM-120-01-S-DV-A-022
Ultra Librarian 3D Model	Ultra Librarian TSM-120-01-S-DV-A-022 CAD Model

Alternative Products

Description

The TSM-120-01-S-DV-A-022 is a 40-pin header connector from Samtec Inc. that is designed for use in board-to-board or cable applications.

Pitch: 0.100" (2.54mm)
Contact Finish: Gold
Commonly Used: Industrial and commercial applications, such as in telecommunications and data communications
RoHS Compliant: Yes
Market Demand: High
