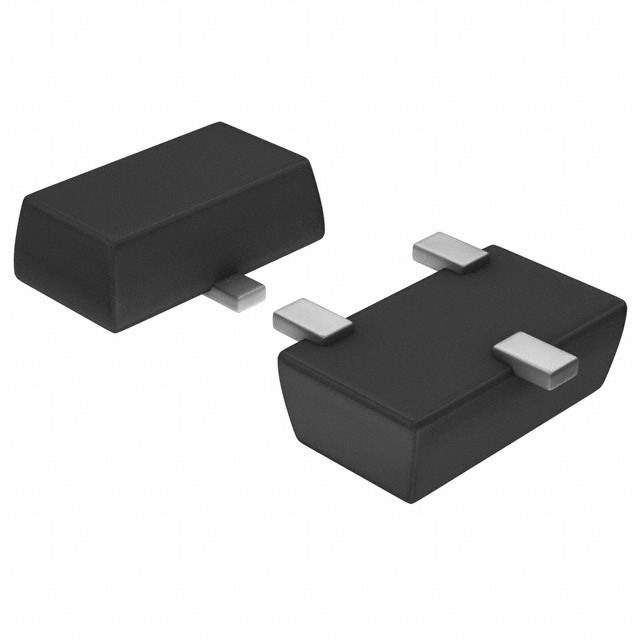

The 2SC5536 is a silicon NPN epitaxial planar RF transistor manufactured by SANYO Semiconductor. It is designed for low-noise amplification in various radio frequency applications. Its high gain and low noise figure make it suitable for use in RF front-end circuits.

Applications

• Low-noise amplifiers (LNAs) for radio receivers
• RF front-end circuits in communication systems
• Oscillators and mixers in RF equipment
• Buffer amplifiers in RF signal chains
• High-frequency amplification in test and measurement equipment

Features

• NPN Silicon Epitaxial Planar Transistor: Utilizes advanced semiconductor technology for high performance.
• Low Noise Figure: Optimized for minimal noise contribution in RF amplification.
• High Gain: Provides significant signal amplification for improved receiver sensitivity.
• High Transition Frequency (fT): Suitable for high-frequency applications.
• Small Package: Compact package for space-constrained designs.

Benefits

• Improved Receiver Sensitivity: Low noise figure enhances the ability to detect weak signals.
• Increased Signal Strength: High gain provides strong signal amplification, improving overall system performance.
• Enhanced System Performance: Optimized for high-frequency operation.
• Compact Design: Small package allows for integration into small form-factor devices.
• Reliable Operation: Designed for stable and consistent performance in RF applications.

The 2SC5536 is typically used in applications where low noise and high gain are critical. It operates with a relatively low voltage and current, making it suitable for battery-powered devices. The transistor's specifications include a typical noise figure of around 1 dB and a transition frequency (fT) in the GHz range. It is often packaged in a small surface-mount package to minimize parasitic inductance and capacitance. Proper biasing and impedance matching are essential for achieving optimal performance with this transistor.
