Same model may have multiple batches, images only for reference.

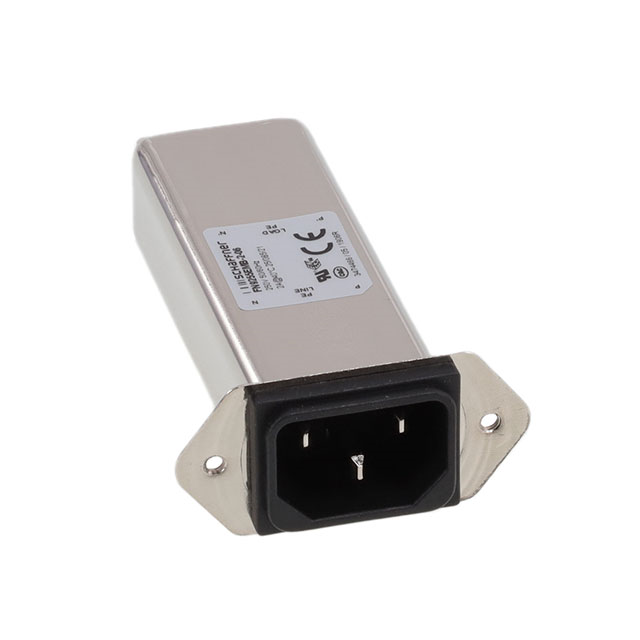

FN9255EMB-2-06 Real Image
Same model may have multiple batches, images only for reference.

FN9255EMB-2-06

Part No FN9255EMB-2-06
Manufacturer Schaffner EMC Inc.
Catalog Power Entry Connectors - Inlets, Outlets, Modules
Description C14 2A REAT PANEL MOUNT NO EARTH / Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange
Datasheet
FN9255EMB-2-06 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Power Entry Connectors - Inlets, Outlets, Modules
Mfr Schaffner EMC Inc.
Series FN 9255E
Package Bulk
Connector Style IEC 320-C14
Connector Type Receptacle, Male Blades
Current - UL 2A
Voltage - UL 250VAC
Filter Type Filtered (EMI, RFI) - Commercial, Medical
Accomodates a Fuse No
Number of Positions 3
Mounting Type Panel Mount, Flange
Termination Quick Connect - 0.250" (6.3mm)
Features Earth Line Choke, Rear Side Mount
Panel Cutout Dimensions Rectangular - 30.40mm x 22.90mm
Material Flammability Rating UL94 V-0
Ingress Protection IP40
Approval Agency CE, CQC, ENEC, UR
Base Product Number FN9255EMB
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Other Names 817-2747,817839
Standard Package 60
Win Source Part Number 1113154-FN9255EMB-2-06
Ultra Librarian 3D Model Ultra Librarian FN9255EMB-2-06 CAD Model

Description

The Schaffner EMC Inc. FN 9255E 1113154-FN9255EMB-2-06 is a filtered (EMI, RFI) - commercial, medical power entry connector.

  • Type: Filtered (EMI, RFI) - Commercial, Medical
  • Mounting Type: Panel Mount, Flange
  • Panel Cutout: 30.40mm x 22.90mm
  • Connector Style: IEC 320-C14
  • Ingress Protection: IP40
  • Voltage Rating: 250VAC
  • Current Rating: 2A
  • Flammability Rating: UL94 V-0
  • REACH: Unaffected
  • Approvals: CE, CQC, ENEC, UR
