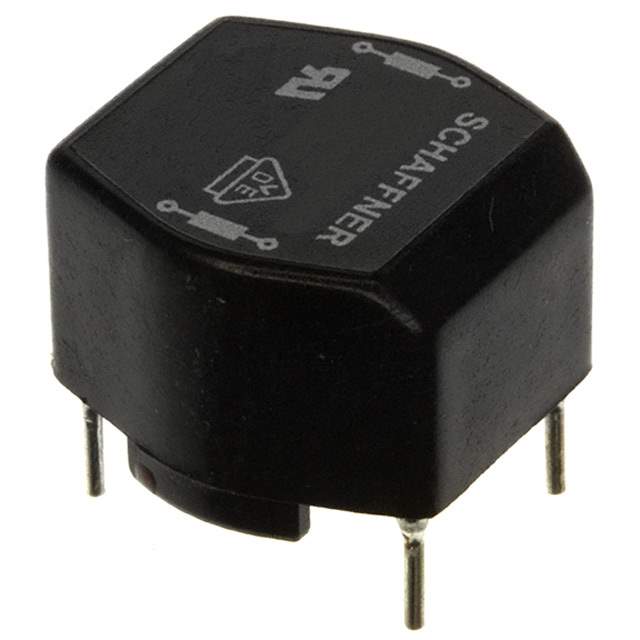

RN112-3.6-02-0M4

Part No RN112-3.6-02-0M4
Manufacturer Schaffner EMC Inc.
Catalog Common Mode Chokes
Description CMC 400UH 3.6A 2LN TH / 400 µH @ 10 kHz 2 Line Common Mode Choke Through Hole 3.6A DCR 27mOhm (Typ)
Datasheet
RN112-3.6-02-0M4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Schaffner EMC Inc.
Series RN
Package Tube
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 400 µH @ 10 kHz
Current Rating (Max) 3.6A
DC Resistance (DCR) (Max) 27mOhm (Typ)
Voltage Rating - AC 300V
Temperature Range - Operating -40°C ~ 100°C
Approval Agency ENEC, UR, VDE
Mounting Type Through Hole
Dimension 0.697" L x 0.673" W (17.70mm x 17.10mm)
Height (Max) 0.508" (12.90mm)
Package / Case Horizontal, 4 PC Pin
Base Product Number RN112
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names 817-2099,815696
Standard Package 25
Win Source Part Number 1088485-RN112-3.6-02-0M4
Ultra Librarian 3D Model Ultra Librarian RN112-3.6-02-0M4 CAD Model

Description

The Schaffner EMC Inc. RN Series Common Mode Chokes are a reliable and efficient solution for power line filtering.

  • Maximum Current Rating: 3.6A
  • Voltage Rating: 300V AC
  • Applications: Variety of power line filtering applications
  • Inductance: 400 µH @ 10 kHz frequency
  • DC Resistance (DCR): 27 mOhm (typical)
  • Mounting: Through-hole
  • Package/Case: Horizontal, 4 PC pin
  • Operating Temperature: -40°C to 100°C
  • Alternative Parts: DLW5BTM501SQ2L, DLW5BTM501TQ2L, DLW5ATN331MQ2L, RN212-3.6-02-0M4, RN214-4-02-1M5, and RN112-4-02-0M7
  • MSL Level: 1 (unlimited)
  • REACH: unaffected
