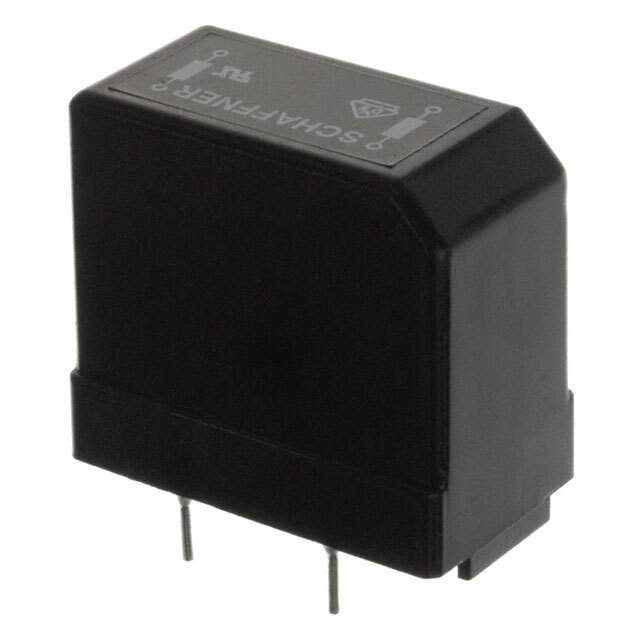

RN222-0.6-02-47M

Name: RN222-0.6-02-47M
Brand: Schaffner EMC Inc.
SKU: 992911
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	RN222-0.6-02-47M
Manufacturer	Schaffner EMC Inc.
Catalog	Common Mode Chokes
Description	CMC 47MH 600MA 2LN TH / 47 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 600mA DCR 1.3Ohm (Typ)
Datasheet	RN222-0.6-02-47M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters>Common Mode Chokes
Mfr	Schaffner EMC Inc.
Series	RN
Package	Tube
Filter Type	Power Line
Number of Lines	2
Inductance @ Frequency	47 mH @ 10 kHz
Current Rating (Max)	600mA
DC Resistance (DCR) (Max)	1.3Ohm (Typ)
Voltage Rating - AC	300V
Temperature Range - Operating	-40°C ~ 100°C
Approval Agency	ENEC, UR, VDE
Mounting Type	Through Hole
Dimension	1.220" L x 0.709" W (31.00mm x 18.00mm)
Height (Max)	1.165" (29.60mm)
Package / Case	Vertical, 4 PC Pin
Base Product Number	RN222
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8548.00.0000
Other Names	816561,817-2201
Standard Package	300
Win Source Part Number	992911-RN222-0.6-02-47M
Ultra Librarian 3D Model	Ultra Librarian RN222-0.6-02-47M CAD Model

Alternative Products

Description

The Schaffner EMC Inc. RN222 is a common mode choke designed for power line filtering.

Type: common mode choke
Configuration: vertical, 4 PC pin
Inductance: 47 mH @ 10 kHz
Current Rating: 600mA
Voltage Rating: 300V AC
Standard Package: 300
Height: 1.165 inches (29.60mm)
Width: 0.709 inches (18.00mm)
Mounting Type: through-hole
Temperature Range: -40°C to 100°C
ECCN: EAR99 compliant
HTSUS code: 8548.00.0000
