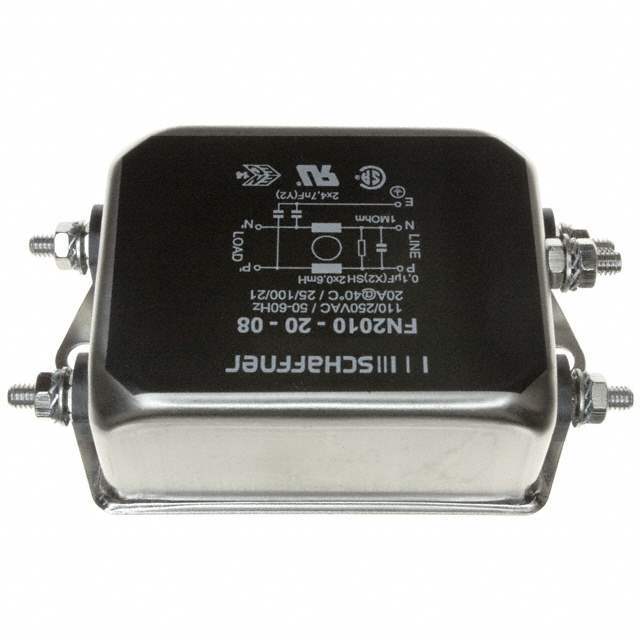

FN2010-20-08 Schaffner EMC Inc.
Same model may have multiple batches, images only for reference.

FN2010-20-08

Part No FN2010-20-08
Manufacturer Schurter Inc.
Catalog Power Line Filter Modules
Description LINE FILTER 250VAC 20A CHASS MNT
Datasheet
FN2010-20-08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters >Power Line Filter Modules
Manufacturer Schaffner EMC Inc.
Packaging Tray
Part Status Active
Filter Type Single Phase
Configuration Single Stage
Voltage - Rated AC 250V
Frequency - Operating DC ~ 400Hz
Applications General Purpose
Approval Agency CSA, ENEC, UR
Ultra Librarian 3D Model Ultra Librarian FN2010-20-08 CAD Model

Description

  • Rated currents from 1 to 60 A
  • General purpose filtering performance
  • Optional medical versions (B type)
  • Optional safety versions (A type)
  • Optional enhanced performance versions
  • Optional DC optimized versions
