Same model may have multiple batches, images only for reference.

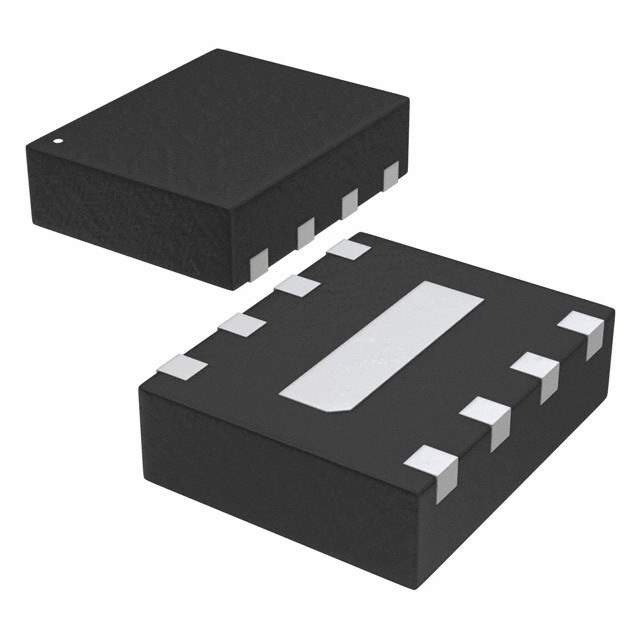

ECLAMP2485T.TCT Real Image
Same model may have multiple batches, images only for reference.

ECLAMP2485T.TCT

Part No ECLAMP2485T.TCT
Manufacturer Semtech Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC ESD SMD / ESD/EMI Protection for SIM Card
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Semtech Corporation
Packaging Reel
Type Low Pass
Filter Order 1st
Technology RC
Number of Channels 3
Resistance - Channel (Ohms) 47, 100
Values R = 47Ohms, 100Ohms, C = 12pF
ESD Protection Yes
Temperature Range - Operating -40°C ~ 85°C
Applications Data Lines for Mobile Devices
Mounting Style SMD
Manufacturer Package 8-XFDFN Exposed Pad
Dimension 0.067" L x 0.051" W (1.70mm x 1.30mm)
Height 0.017" (0.43mm)
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 805280-ECLAMP2485T.TCT
Ultra Librarian 3D Model Ultra Librarian ECLAMP2485T.TCT CAD Model

Description

The Semtech Corporation 805280-ECLAMP2485T.TCT is a low pass filter from Semtech Corporation.

  • Description: Provides ESD protection for data lines in mobile devices
  • Applications: Industrial
  • Supply and Demand Status: Balanced
