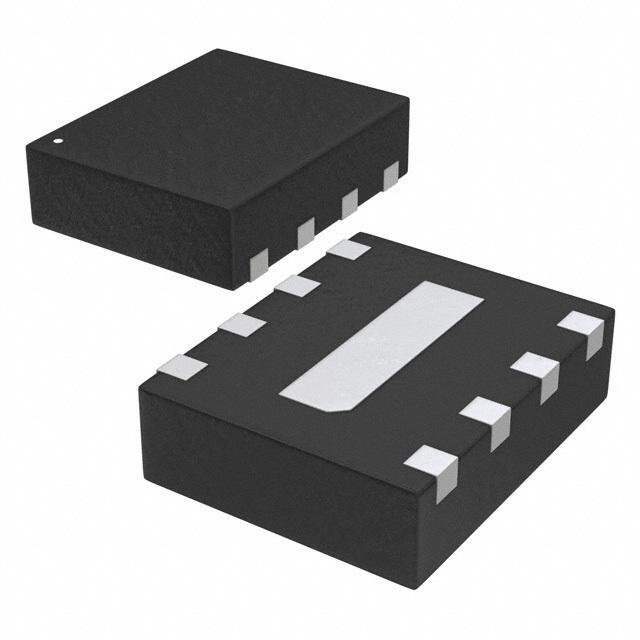

UCLAMP0508T.TCT Semtech Corporation
Same model may have multiple batches, images only for reference.

UCLAMP0508T.TCT

Part No UCLAMP0508T.TCT
Manufacturer Semtech Corporation
Catalog TVS - Diodes
Description TVS DIODE 5VWM 12.5VC SLP
Datasheet
UCLAMP0508T.TCT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Semtech Corporation
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 8
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 12.5V
Peak Pulse Current(Ippm) 2A (8/20μs)
Power Dissipation - Pd 25W
Applications General Purpose
Capacitance @ Frequency 10pF @ 1MHz
Temperature Range - Operating -55°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SLP1713P8T
Win Source Part Number 035860-UCLAMP0508T.TCT
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian UCLAMP0508T.TCT CAD Model

Description

The Semtech Corporation 035860-UCLAMP0508T.TCT is a Zener type circuit protection device that is ideal for general-purpose applications.

  • Mounting: surface mount technology (SMT)
  • Packaging: reel - TR
  • Channels: eight unidirectional channels
  • Capacitance: 10pF @ 1MHz
  • Package: SLP1713P8T
  • Stand-off Voltage (Vwm): 5V (Max)
  • Breakdown Voltage: 6V (Min)
  • Clamping Voltage: 12.5V (Max)
  • Peak Pulse Current(Ippm): 2A (8/20μs)
  • Power Dissipation - Pd: 25W
  • Supply and demand status: sufficient
