Same model may have multiple batches, images only for reference.

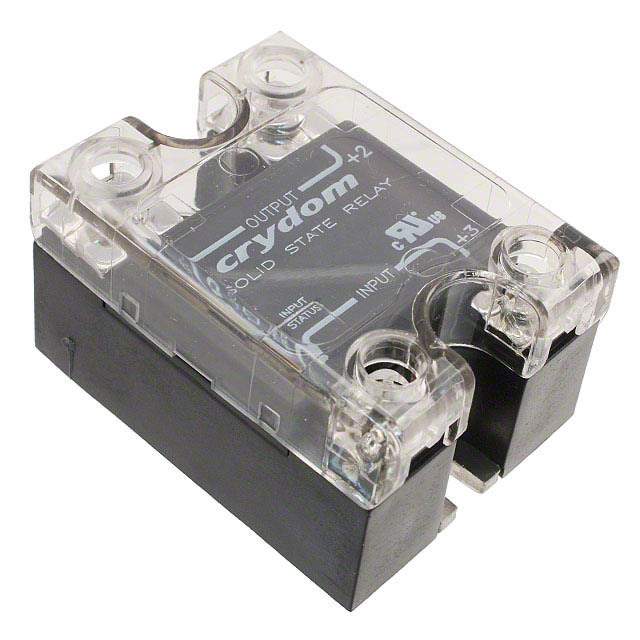

DC100D20C Real Image
Same model may have multiple batches, images only for reference.

DC100D20C

Part No DC100D20C
Manufacturer Sensata-Crydom
Catalog Solid State Relays
Description SSR RELAY SPST-NO 20A 1-72V  /  Solid State SPST-NO (1 Form A) Hockey Puck
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Solid State Relays
Mfr Sensata-Crydom
Series PowerPlus DC
Package Bulk
Mounting Type Chassis Mount
Circuit SPST-NO (1 Form A)
Output Type DC
Voltage - Input 4 ~ 32VDC
Voltage - Load 1 V ~ 72 V
Load Current 20 A
On-State Resistance (Max) 12 mOhms
Termination Style Screw Terminal
Package / Case Hockey Puck
Base Product Number DC100D
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.49.0080
Other Names CC1869
Standard Package 20
Win Source Part Number 1003032-DC100D20C
Ultra Librarian 3D Model Ultra Librarian DC100D20C CAD Model

Description

The Sensata-Crydom PowerPlus DC series solid state relay is a high-performance relay designed for use in various applications.

  • Manufacturer: Sensata-Crydom
  • Series: PowerPlus DC
  • Termination Style: Screw Terminal
  • Package: Bulk
  • Contact Form: SPST-NO (1 Form A)
  • On-State Resistance: 12 mOhms
  • Load Current: 20 A
  • Voltage Input: 4 ~ 32VDC
  • Voltage Load: 1 V ~ 72 V
  • Mounting: Chassis Mount
  • Package/Case: Hockey Puck
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.49.0080
