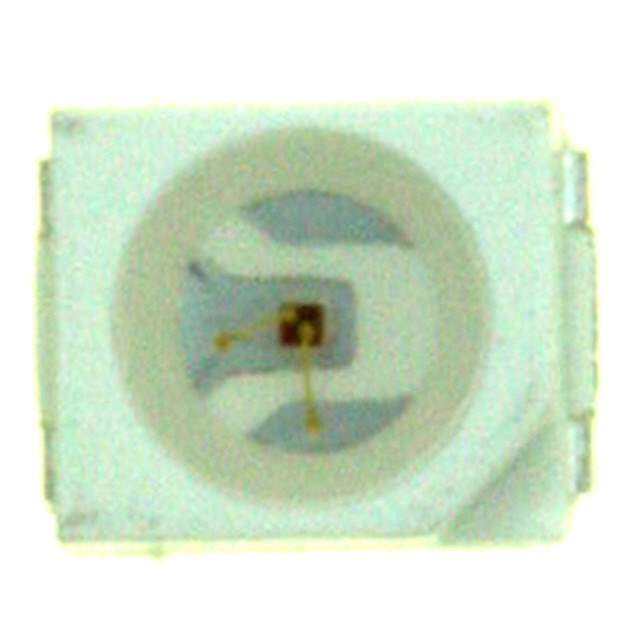

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr SHARP/Socle Technology
Package Tape & Reel
Product Status Obsolete
Color Amber
Configuration Standard
Millicandela Rating 600mcd
Lens Style Round with Flat Top
Lens Size 2.40mm Dia
Voltage - Forward (Vf) (Typ) 2.2V
Current - Test 20mA
Mounting SMD (SMT)
Wavelength - Dominant 588nm
Package / Case 2-PLCC
Dimension 3.20mm L x 2.80mm W
Height (Max) 1.90mm
MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Other Names 425-2730-6,425-2730-1,425-2730-2
Standard Package 2,000
Win Source Part Number 1060864-GM5ZV96270A
Ultra Librarian 3D Model Ultra Librarian GM5ZV96270A CAD Model

Description

The 1060864-GM5ZV96270A is an amber LED indication-discrete component designed for optoelectronics applications.

  • Mounting Style: Surface Mount Device (SMD)
  • Configuration: Standard
  • Package: Tape and Reel
  • Lens Style: Round with a Flat Top
  • Lens Size: 2.40mm diameter
  • Height: 1.90mm
  • Millicandela Rating: 600mcd
  • Voltage Forward (Vf) (Typ): 2.2V
  • Current-Test: 20mA
  • Wavelength-Dominant: 588nm
  • Package/Case: 2-PLCC, 3.20mm L x 2.80mm W
  • Status: Obsolete
  • ECCN: EAR99
  • HTSUS: 8541.41.0000
  • MSL Level: 4 (72 hours)
  • Manufacturer: SHARP/Socle Technology
