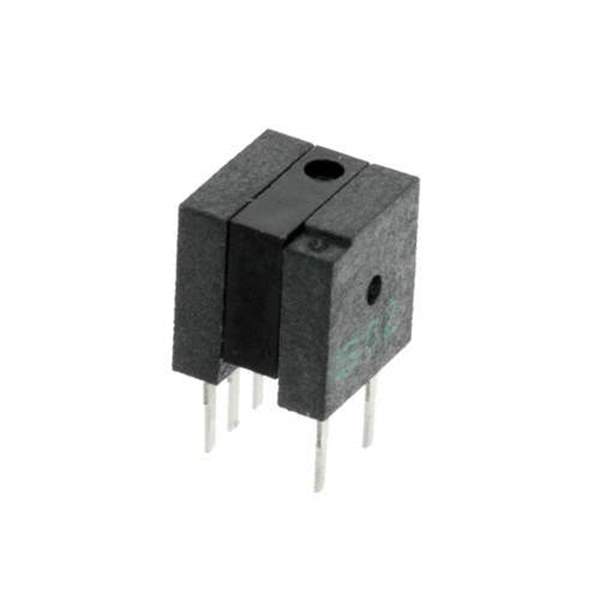

GP1S036HEZ Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers>Motion Sensors - Tilt Switches
Mfr Sharp Microelectronics
Package Tube
Product Status Obsolete
Output Type 2 Phase
Mounting Type Through Hole, Straight
Temperature Range - Operating -25°C ~ 85°C
Current - Output 20mA
Package / Case PCB Mount
RoHS Status RoHS non-compliant
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8541.49.8000
Other Names GP1S036HEZ0F,425-1037-5,425-1961-5,425-1961-5INACTIVE,425-1961-5-ND
Standard Package 50
Win Source Part Number 1113989-GP1S036HEZ
Ultra Librarian 3D Model Ultra Librarian GP1S036HEZ CAD Model

Description

The Sharp Microelectronics GP1S036HEZ is a tilt switch used in motion sensors.

  • Output Type: 2 phase
  • Current Output: 20mA
  • Mounting: Through hole, straight
  • Packaging: Tube
  • Mount: PCB mount
  • Temperature Range: -25°C to 85°C
  • Category: sensors, transducers - motion sensors - tilt switches
  • Status: Obsolete
