Same model may have multiple batches, images only for reference.

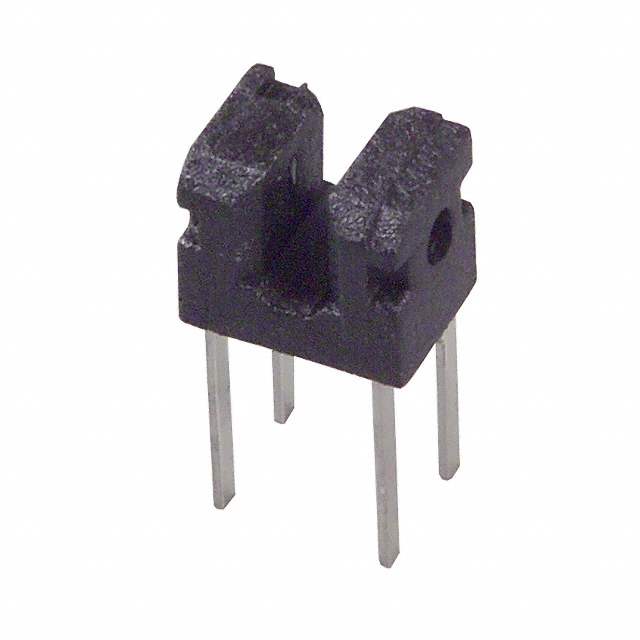

GP1S096HCZ0F Real Image
Same model may have multiple batches, images only for reference.

GP1S096HCZ0F

Part No GP1S096HCZ0F
Manufacturer Sharp Microelectronics
Catalog Optical Sensors - Photointerrupters - Slot Type - Transistor Output
Description SENSOR OPTO SLOT 1MM TRANS THRU
Datasheet
GP1S096HCZ0F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Sensing Distance 0.039" (1mm)
Sensing Method Transmissive
Continuous forward current- Max 50mA
Maximum Current Collector 20mA
VCEO Maximum Collector-Emitter Breakdown Voltage 35V
Response Time 50μs, 50μs
Temperature Range - Operating -25°C to 85°C
Mounting Through Hole
Type Unamplified
Win Source Part Number 204459-GP1S096HCZ0F
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian GP1S096HCZ0F CAD Model

Description

The GP1S096HCZ0F is a product of Sharp Microelectronics. This product is a sensor and transducer that comes in a tube/rail packaging. The product is unamplified and has a response time of 50μs. It has a sensing method of transmissive and a sensing distance of 0.039" (1mm). The product is obsolete(EOL) and has a temperature range of -25°C to 85°C.
