Same model may have multiple batches, images only for reference.

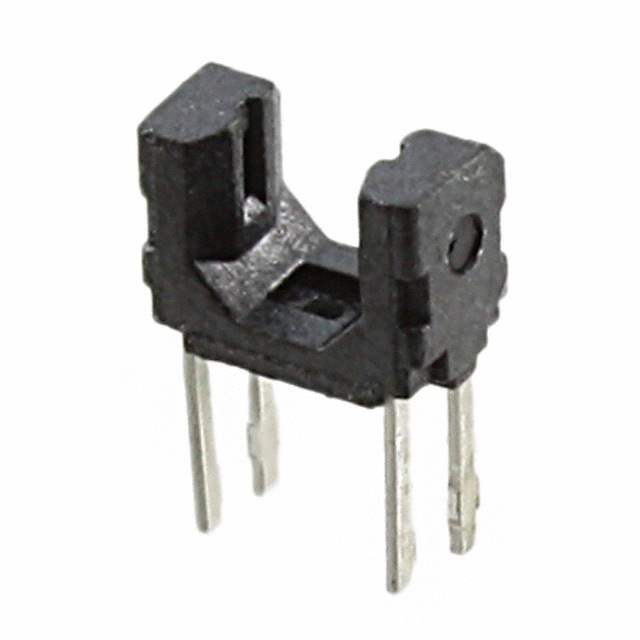

GP1S194HCZ0F Real Image
Same model may have multiple batches, images only for reference.

GP1S194HCZ0F

Part No GP1S194HCZ0F
Manufacturer Sharp Microelectronics
Catalog Optical Sensors - Photointerrupters - Slot Type - Transistor Output
Description Photointerrupter Transmissive 1.7mm Phototransistor 4-Pin Sleeve / PHOTOINTERRUPTER OPIC SLOT 1.7MM
Datasheet
GP1S194HCZ0F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Sensing Distance 0.067" (1.7mm)
Sensing Method Transmissive
Response Time 50μs
Temperature Range - Operating -25°C to 85°C
Mounting Through Hole
Win Source Part Number 067675-GP1S194HCZ0F
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name GP1S194HCZ0F
Introduction Date March 18, 2014
ECCN EAR99
Country of Origin China, Japan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian GP1S194HCZ0F CAD Model

Description

The Sharp Microelectronics GP1S194HCZ0F is a transmissive through-hole sensor that operates with a response time of 50μs and a sensing distance of 0.067" (1.7mm). It is a part of the GP1S194HCZ0F family and is commonly used in sensors and transducers. This sensor is designed to operate in a temperature range of -25°C to 85°C and has an estimated EOL date of 2027. The supply and demand status of this product is balanced.
