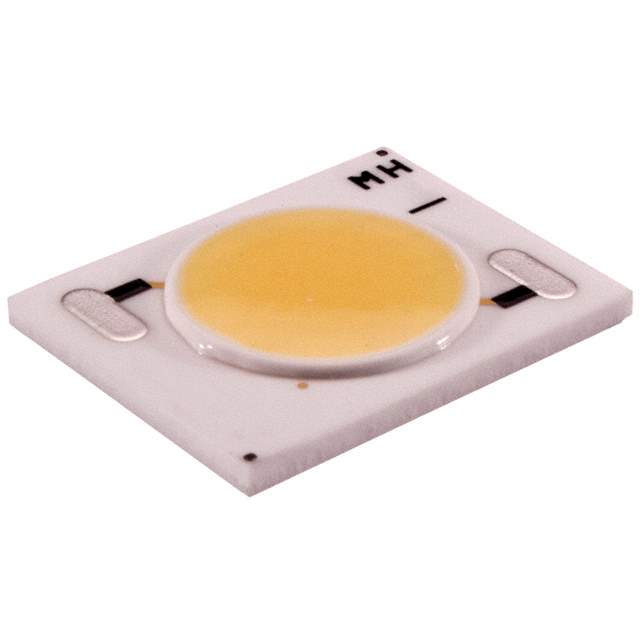

GW5BTC30K00 Real Image
Same model may have multiple batches, images only for reference.

GW5BTC30K00

Part No GW5BTC30K00
Manufacturer Sharp Microelectronics
Catalog LED Lighting - COBs, Engines, Modules
Description LED MOD 3.6W MINI ZENIGATA 3000K / High Efficiency LED Module
Datasheet
GW5BTC30K00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Sharp Microelectronics
Series Mini Zenigata
Packaging Tray
Part Status Obsolete(EOL)
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3000K
Configuration Rectangle
Flux @ Current/Temperature - Test 210 lm (Typ)
Current - Test 360mA
Temperature - Test 25°C
Voltage - Forward (Vf) (Typ) 10.2V
Lumens/Watt @ Current - Test 57 lm/W
Current - Max 400mA
CRI (Color Rendering Index) 83
Dimension 15.00mm L x 12.00mm W
Height 1.60mm
Light Emitting Surface (LES) 7.10mm L x 7.10mm W
Lens Type Flat
Win Source Part Number 775475-GW5BTC30K00
Popularity Medium
Supply and Demand Status Balance
Family Name GW5BTC30K00
Introduction Date December 17, 2009
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian GW5BTC30K00 CAD Model

Description

The Sharp Microelectronics GW5BTC30K00 is a medium-popularity product in the optoelectronics category.

  • Technology: Chip on Board (COB)
  • Current Max: 400mA
  • Voltage Forward (Vf): 10.2V
  • Lens Type: Flat
  • Height: 1.60mm
  • Supply and Demand Status: Balanced
  • Obsolete: Yes
  • Estimated EOL Date: Yes
