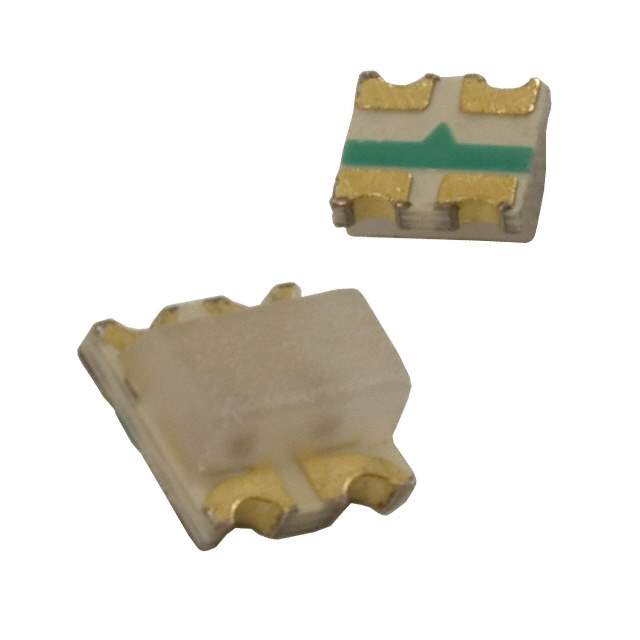

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Color Green, Yellow
Configuration Independent
Lens Color White
Lens Transparency Diffused
Millicandela Rating 19mcd Green, 8.3mcd Yellow
Lens Style/Size Rectangle with Flat Top, 0.80mm x 1.60mm
Forward Voltage 2.1V Green, 2V Yellow
Current - Test 20mA Green, 20mA Yellow
Mounting SMD (SMT)
Wavelength - Peak 565nm Green, 585nm Yellow
Case / Package 1616
Height (Max) 0.80mm
Win Source Part Number 112974-LT1EH67A
Ultra Librarian 3D Model Ultra Librarian LT1EH67A CAD Model

Description

The 112974-LT1EH67A is an electronic component categorized under optoelectronics from Sharp Microelectronics. It is now obsolete (EOL) and has a rectangular shape with a flat top lens style/size of 0.80mm x 1.60mm.

  • Colors: Green and Yellow
  • Lens: Diffused lens transparency
  • Forward Voltage: 2.1V (Green), 2V (Yellow)
  • Millicandela Rating: 19mcd (Green), 8.3mcd (Yellow)
  • Current Test: 20mA (for both colors)
  • Part Number: 112974
