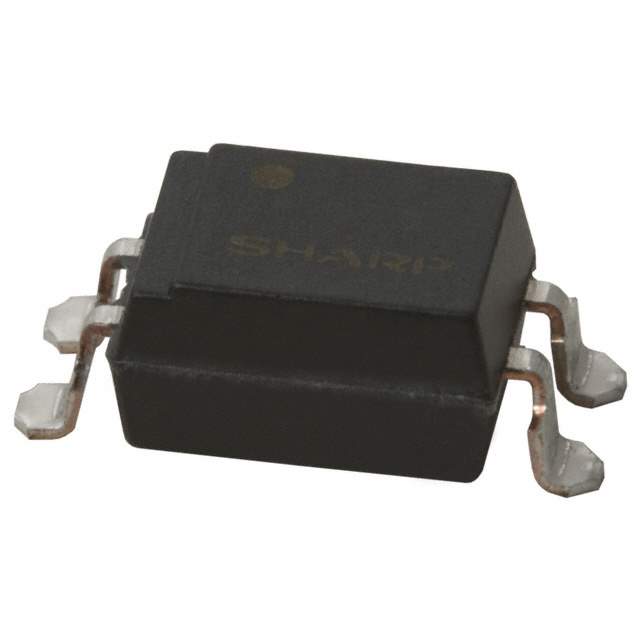

PC123P2J000F Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Features Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD
Manufacturer Sharp Microelectronics
Package Reel - TR
Part Status Obsolete
Operating Temperature Range -30°C ~ 100°C
Mounting Surface Mount
Package 4-SMD, Gull Wing
Case / Package 4-SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.40.8000
Other Part Number 425-2076-6, 425-2076-2, 425-2076-1
Quantity per package 3000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 888612-PC123P2J000F
Ultra Librarian 3D Model Ultra Librarian PC123P2J000F CAD Model

Description

This optoisolator transistor output from Sharp Microelectronics has a part number of 888612-PC123P2J000F.

  • Mounting Type: Surface Mount
  • Package: 4-SMD, gull wing
  • Package: Reel - TR
  • Part Status: Obsolete
  • Operating Temperature Range: -30°C to 100°C
  • Voltage Rating: 5000Vrms
  • Channel: 1
  • Quantity per Package: 3000
  • MSL Level: 1 (unlimited)
  • REACH: Unaffected
  • ECCN: EAR99
  • Supply and Demand Status: Limited
