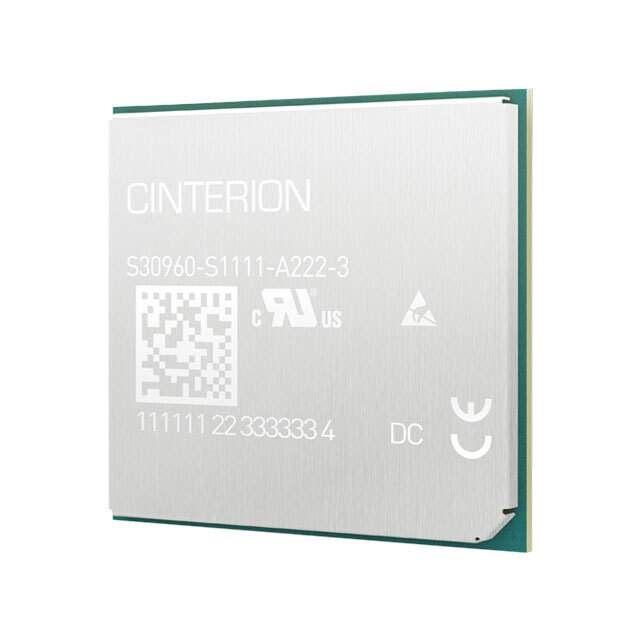

EHS8 REL.4 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless>RF Transceiver Modules and Modems
Mfr Telit
Series Cinterion EHS8
Package Tape & Reel
Product Status Obsolete
RF Family/Standard Cellular
Protocol EDGE, GPRS, GSM, HSDPA, HSUPA, UMTS
Modulation 16-QAM
Frequency 800MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz
Data Rate 7.2Mbps
Power - Output 33dBm
Sensitivity -
Serial Interfaces ADC, GPIO, I²C, I²S, PCM, SPI, UART, USB
Antenna Type Antenna Not Included
Utilized IC / Part Intel XMM 6260
Memory Size 10MB Flash, 10MB RAM
Voltage - Supply 3.3V ~ 4.5V
Current - Receiving -
Current - Transmitting -
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 90°C
Package / Case 122-LGA Module
Base Product Number EHS8
Moisture Sensitivity Level (MSL) 4 (72 Hours)
ECCN 5A992C
HTSUS 8517.62.0090
Standard Package 500 pcs
Win Source Part Number 1382447-EHS8 REL.4
Ultra Librarian 3D Model Ultra Librarian EHS8 REL.4 CAD Model

Description

The Cinterion EHS8 RF Transceiver Module is a versatile and high-performance component designed for wireless communication applications.

  • Frequency Range: 800MHz to 2.1GHz
  • Protocols: EDGE, GPRS, GSM, HSDPA, HSUPA, UMTS
  • Data Rate: Up to 7.2Mbps
  • Memory: 10MB Flash, 10MB RAM
  • IC: Intel XMM 6260
  • Serial Interfaces: ADC, GPIO, I²C, I²S, PCM, SPI, UART, USB
  • Voltage Supply: 3.3V to 4.5V
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C to 90°C
