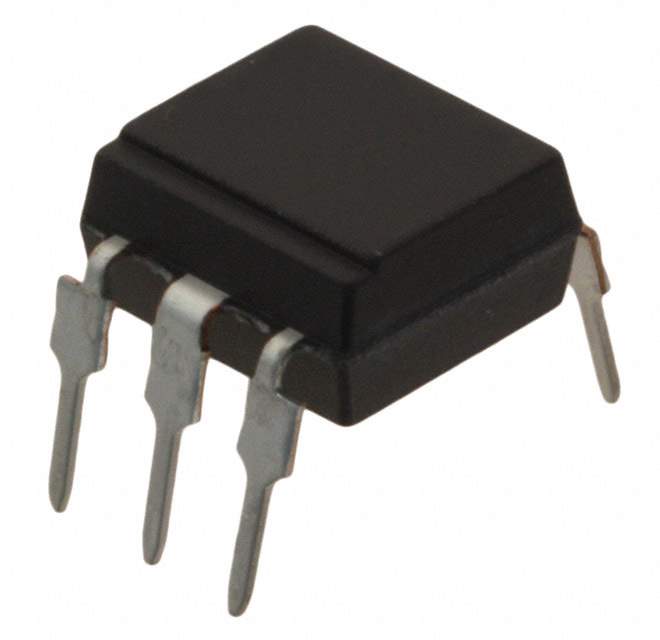

PC3SD21NTZDF Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Output Type Triac
Zero Crossing Circuit Yes
Number of Channels 1
Isolation Voltage 5000Vrms
Voltage - Off State 600V
Static dV/dt (Min) 1kV/μs
Current - LED Trigger (Ift) (Max) 3mA
Current - On State (It (RMS)) (Max) 100mA
Current - Hold (Ih) 3.5mA
Turn On Time 50μs (Max)
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Temperature Range - Operating -30°C to 100°C
Mounting Through Hole
Case / Package 6-DIP
Approvals CSA, UR
Win Source Part Number 026428-PC3SD21NTZDF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian PC3SD21NTZDF CAD Model

Description

The Sharp Microelectronics 026428-PC3SD21NTZDF is an isolator with a triac output type and a forward voltage of 1.2V.

  • Isolation Voltage: 5000Vrms
  • Current Rating: 100mA
  • Temperature Range: -30°C to 100°C
  • Popularity: high
  • Supply and Demand Status: limited
  • Quantity per Package: 50
