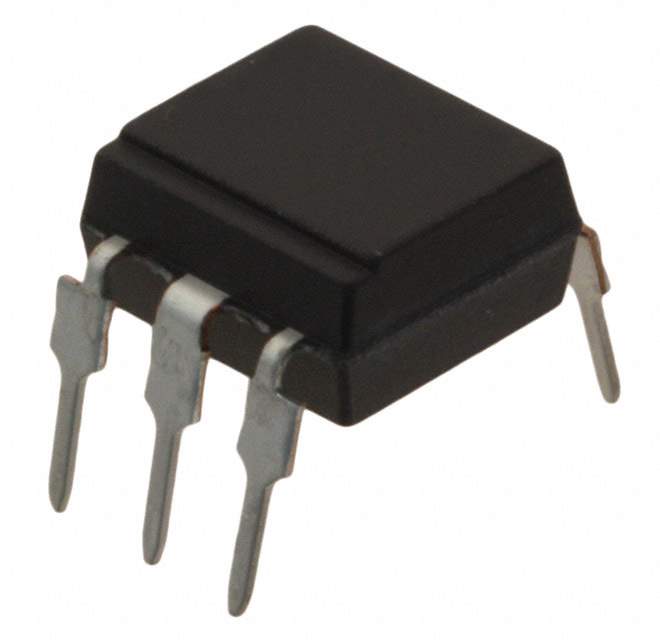

PC4SF21YVZBF Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Tube
Output Type Triac
Zero Crossing Circuit Yes
Number of Channels 1
Voltage - Isolation 5000Vrms
Voltage - Off State 800V
Static dV/dt (Minimum) 500V/μs
Current - LED Trigger (Ift) (Maximum) 7mA
Current - On State (It (RMS)) (Maximum) 100mA
Current - Hold (Ih) 3.5mA
Turn On Time 50μs (Maximum)
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Maximum) 50mA
Operating Temperature Range -30°C ~ 100°C
Mounting Style Through Hole
Package 6-DIP (0.300", 7.62mm), 5 Leads
Manufacturer Package 6-DIP
Approvals BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE
Win Source Part Number 791431-PC4SF21YVZBF
Popularity Medium
Supply and Demand Status Limited
Family Name PC4SF21
Introduction Date August 31, 2002
ECCN EAR99
Country of Origin China, Indonesia, Japan, Philippines
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian PC4SF21YVZBF CAD Model

Description

The PC4SF21 series isolator is a reliable and high-performing solution for your electronic component needs.

  • Package: 6-DIP (0.300", 7.62mm), 5 Leads
  • Isolation Voltage: 5000Vrms
  • Off State Voltage: 800V
  • Channels: 1
  • Current Hold (Ih): 3.5mA
  • Zero Crossing Circuit: Yes
  • Turn On Time (Maximum): 50μs
  • Current On State (It (RMS)) (Maximum): 100mA
  • Static dV/dt (Minimum): 500V/μs
