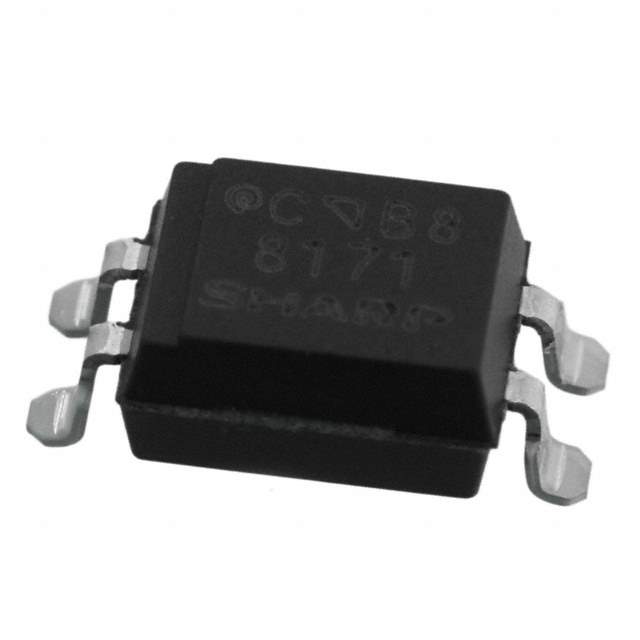

PC81713NIP0X Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 200% @ 500μA
Maximum DC Current Transfer Ratio 500% @ 500μA
Rise and Fall Time 4μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 10mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -30°C to 100°C
Mounting SMD (SMT)
Case / Package 4-SMD
Win Source Part Number 112361-PC81713NIP0X
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PC81713NIP0X CAD Model

Description

The PC81713NIP0X from Sharp Microelectronics is an isolator that has a maximum output voltage of 80V and a channel output current of 50mA.

  • Maximum Output Voltage: 80V
  • Channel Output Current: 50mA
  • Continuous Forward Current: 10mA max
  • Switching Turn-On Time: Unspecified
  • Switching Turn-Off Time: Unspecified
  • Rise Time: 4μs
  • Fall Time: 3μs
  • Minimum DC Current Transfer Ratio: 200% @ 500μA
  • Maximum DC Current Transfer Ratio: 500% @ 500μA
  • Mounting Type: SMD (SMT)
  • Packaging: 4-SMD
  • Temperature Range: -30°C to 100°C
