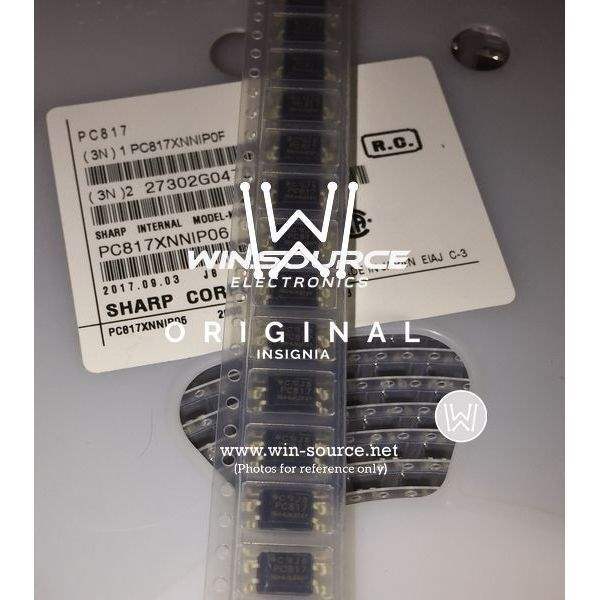

PC817XNNIP0F Sharp Microelectronics PC817XNNIP0F Real Image PC817XNNIP0F real image
Same model may have multiple batches, images only for reference.
PC817XNNIP0F Sharp Microelectronics PC817XNNIP0F Real Image PC817XNNIP0F real image
PC817XNNIP0F Sharp Microelectronics PC817XNNIP0F Real Image PC817XNNIP0F real image
Same model may have multiple batches, images only for reference.

PC817XNNIP0F

Part No PC817XNNIP0F
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 5KV TRANS 4SMD / Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin PDIP SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 50% @ 5mA
Maximum DC Current Transfer Ratio 600% @ 5mA
Rise and Fall Time 4μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -30°C to 100°C
Mounting SMD (SMT)
Case / Package 4-SMD
Win Source Part Number 132921-PC817XNNIP0F
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 2k pcs
Family Name PC817XNNIP0F
Introduction Date March 17, 2010
ECCN EAR99
Country of Origin Japan
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian PC817XNNIP0F CAD Model

Description

The Sharp Microelectronics PC817XNNIP0F is a high popularity component that is commonly used as an isolator.

  • Minimum DC Current Transfer Ratio: 50% @ 5mA
  • Maximum DC Current Transfer Ratio: 600% @ 5mA
  • Quality: High-quality component ideal for use in a variety of different electronic devices
