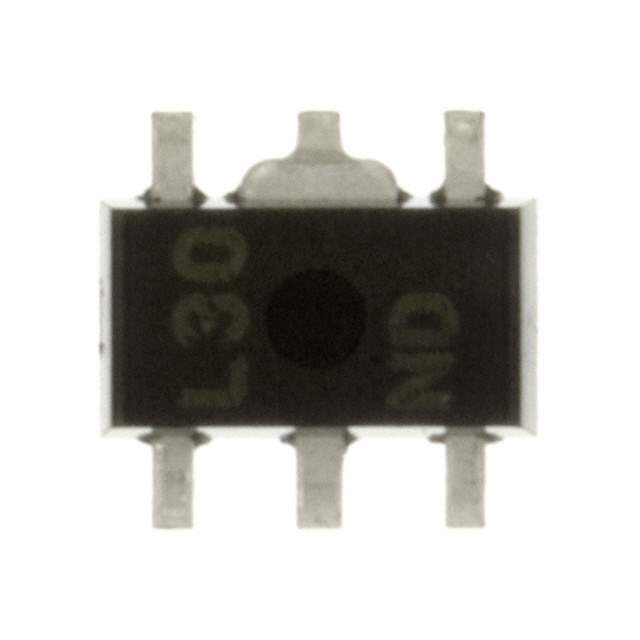

PQ1LA503MSPQ Real Image
Same model may have multiple batches, images only for reference.

PQ1LA503MSPQ

Part No PQ1LA503MSPQ
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 5V 0.3A SOT89
Datasheet
PQ1LA503MSPQ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 15V
Nominal Output Voltage (Min/Fixed) 5V
Dropout Voltage-Max 0.7V @ 300mA
Output Current 300mA
Operating Supply Current 800μA
PSRR 55dB (400Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C to 85°C
Regulator Topology Positive Fixed
Output Voltage 5V
Voltage - Dropout (Typical) 0.4V @ 300mA
Mounting SMD (SMT)
Case / Package SOT-89
Win Source Part Number 127144-PQ1LA503MSPQ
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PQ1LA503MSPQ CAD Model

Description

The Sharp Microelectronics PQ1LA503MSPQ is a positive fixed regulator with a dropout voltage of 0.4V @ 300mA.

  • Dropout Voltage: 0.4V @ 300mA
  • Maximum Input Voltage: 15V
  • Nominal Output Voltage: 5V
  • Integrated Circuit: Yes
  • Package: SOT-89
  • Current Rating: 300mA
  • Operating Supply Current: 800μA
  • Protection: Over-current and Over-temperature
  • PSRR: 55dB @ 400Hz
  • Package Type: Reel of TR
  • Popularity: Medium
  • Supply and Demand Status: Limited
