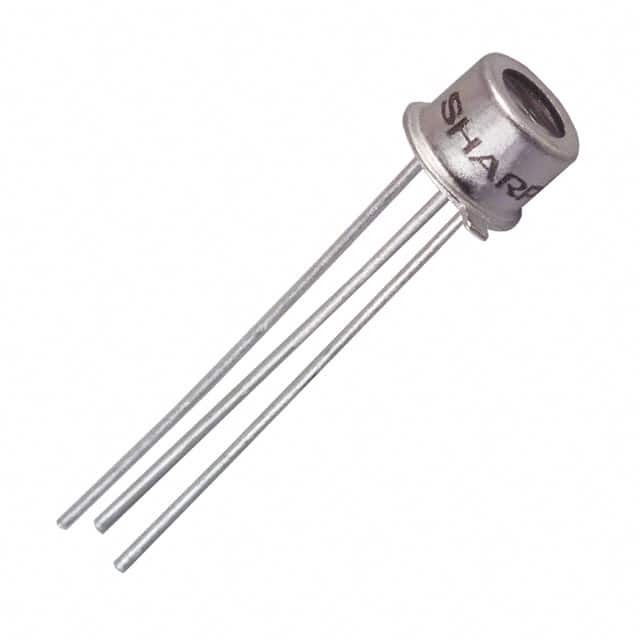

PT550F
Same model may have multiple batches, images only for reference.

PT550F

Part No PT550F
Manufacturer Sharp Microelectronics
Catalog Optical Sensors - Phototransistors
Description SENSOR PHOTO 800NM TOP TO206AA / Phototransistors 800nm Top View TO-206AA, TO-18-3 Metal Can
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Phototransistors
Mfr Sharp Microelectronics
Package Tube
Product Status Obsolete
Voltage - Collector Emitter Breakdown (Max) 35 V
Current - Collector (Ic) (Max) 100 mA
Current - Dark (Id) (Max) 1 µA
Wavelength 800nm
Viewing Angle 100°
Power - Max 150 mW
Mounting Type Through Hole
Orientation Top View
Temperature Range - Operating -25°C ~ 125°C (TA)
Package / Case TO-206AA, TO-18-3 Metal Can
Standard Package 50 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.7080
Win Source Part Number 930984-PT550F
Ultra Librarian 3D Model Ultra Librarian PT550F CAD Model

Description

The PT550F is a phototransistor sensor from Sharp Microelectronics.

  • Sensor Type: Phototransistor
  • Package: Tube
  • Standard Package Quantity: 50 pieces
  • Maximum Power Dissipation: 150mW
  • Maximum Collector-Emitter Breakdown Voltage: 35V
  • Maximum Collector Current: 100mA
  • Viewing Angle: 100°
  • Peak Sensitivity Wavelength: 800nm
  • Dark Current: 1µA
  • Mounting Type: Through-hole
  • Package: TO-206AA, TO-18-3 metal can
  • Operating Temperature Range: -25°C to 125°C
  • Status: Obsolete
