The BAS140W is a high-speed switching diode manufactured by Siemens (now Infineon Technologies). While designated as END-OF-LIFE, its characteristics remain important for understanding legacy circuit designs. This diode is designed for fast switching applications, particularly in signal processing and protection circuits.

Applications

• High-Speed Switching: Used in circuits requiring rapid switching.
• Signal Clamping: Provides voltage clamping to protect sensitive components.
• Reverse Polarity Protection: Protects circuits from reverse polarity damage.
• Small Signal Rectification: Used for rectifying small signals in electronic circuits.
• ESD Protection: Protects circuits from electrostatic discharge.

Features

• High Switching Speed: Fast reverse recovery time for efficient switching.
• Low Capacitance: Minimizes signal distortion in high-frequency circuits.
• Low Forward Voltage: Reduces power loss and improves efficiency.
• Small Package: Allows for compact designs.
• Surface Mount Device (SMD): Suitable for automated assembly.

Benefits

• Fast Switching: Rapid switching ensures minimal signal delay.
• Signal Integrity: Low capacitance maintains signal integrity.
• Efficient Performance: Low forward voltage drop minimizes power loss.
• Compact Design: Small package allows for miniaturized circuits.
• Reliable Protection: Provides reliable voltage clamping and reverse polarity protection.

Additional Details

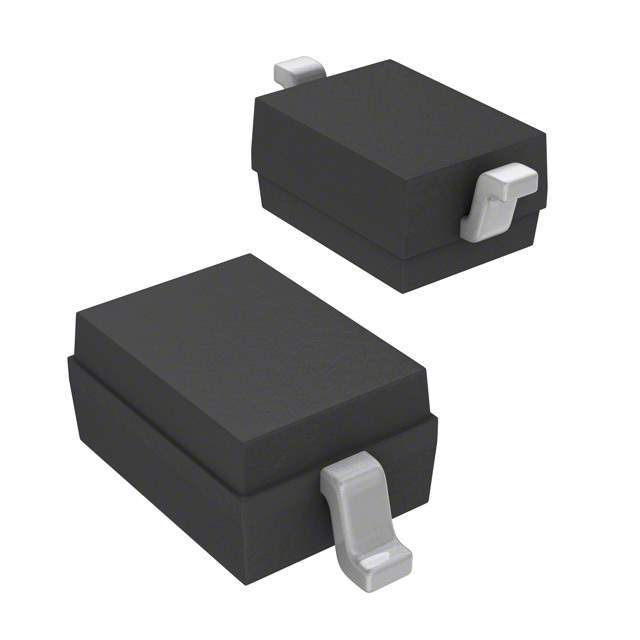

The BAS140W features a repetitive peak reverse voltage (VRRM) typically around 80V, and a forward current (IF) rating that depends on the operating conditions and datasheet specifications. It has a very fast reverse recovery time (trr), usually in the nanosecond range, and low junction capacitance. The diode is commonly packaged in a small SOD-323 or similar surface-mount package. Always consult the datasheet for precise specifications, including thermal resistance and maximum operating temperature.

While the BAS140W is an EOL component, its characteristics are valuable for understanding legacy circuit behavior and for selecting suitable replacements. When considering alternatives, prioritize matching the key specifications, such as VRRM, IF, trr, and capacitance, to ensure equivalent or improved performance in the intended application. Modern diodes with similar characteristics are readily available from various manufacturers.
