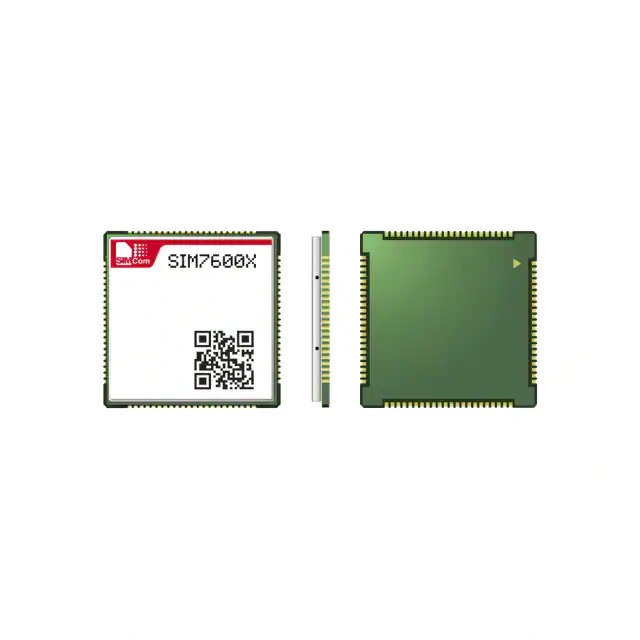

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr SIMCom Wireless Solutions Limited
Series SIM7600
Package Tray
Product Status Active
RF Family/Standard Cellular
Protocol EDGE, GPRS, HSPA+, LTE, WCDMA
Modulation -
Frequency 850MHz, 900MHz, 1.8GHz, 1.9GHz
Data Rate 10Mbps
Power - Output -
Sensitivity -
Serial Interfaces ADC, I²C, PCM, SPI, UART, USB
Antenna Type Antenna Not Included
Utilized IC / Part -
Memory Size -
Voltage - Supply 3.4V ~ 4.2V
Current - Receiving -
Current - Transmitting -
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C
Package / Case 87-SMD Module
MSL Level 3 (168 Hours)
ECCN 5A992C SC
HTSUS 8517.62.0090
Win Source Part Number 1379858-SIM7600SA
Ultra Librarian 3D Model Ultra Librarian SIM7600SA CAD Model

Description

The SIM7600SA is an RF transceiver module and modem designed for wireless communication applications from SIMCom Wireless Solutions Limited.

  • Operating Temperature Range: -40°C to 85°C
  • Voltage Supply: 3.4V to 4.2V
  • Frequencies: 850MHz, 900MHz, 1.8GHz, 1.9GHz
  • Mounting Type: Surface Mount
  • HTSUS: 8517.62.0090
  • Cellular Protocol: EDGE, GPRS, HSPA+, LTE, WCDMA
  • Serial Interfaces: ADC, I²C, PCM, SPI, UART, USB
