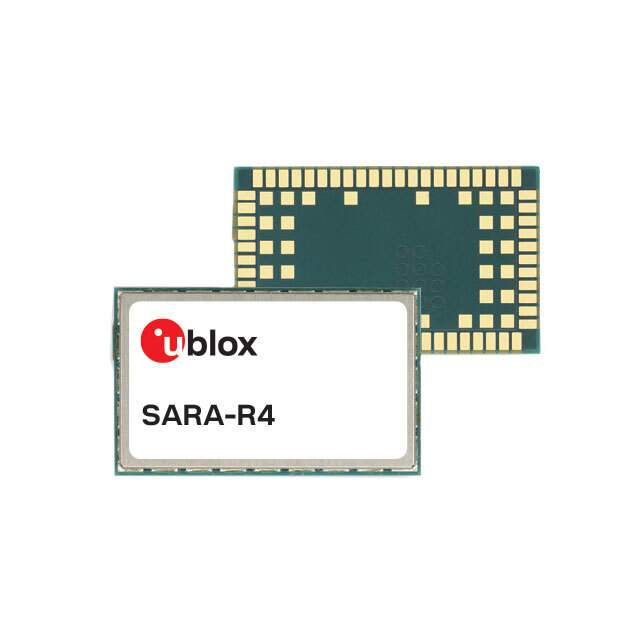

Same model may have multiple batches, images only for reference.

SARA-R422M8S-00B

Name: SARA-R422M8S-00B
Brand: U-blox
SKU: 1341212
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SARA-R422M8S-00B
Manufacturer	U-blox
Catalog	RF Transceiver Modules
Description	RF TXRX LTE NB-IOT EGPRS GNSS / Cellular 4G LTE CAT M1/NB-IoT Transceiver Module 700MHz, 750MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz Antenna Not Included, Castellation Surface Mount
Datasheet	SARA-R422M8S-00B Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	RF and Wireless - RF Transceiver Modules and Modems
Mfr	U-Blox
Series	SARA-R4
Package	Tape & Reel
RF Family/Standard	Cellular
Protocol	4G LTE CAT M1/NB-IoT
Modulation	8PSK, GMSK
Frequency	700MHz, 750MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz
Data Rate	1.119Mbps
Power - Output	33dBm
Serial Interfaces	GPIO, I²C, UART, USB
Antenna Type	Antenna Not Included, Castellation
Voltage - Supply	3.2V ~ 4.5V
Current - Receiving	350mA
Current - Transmitting	350mA
Mounting Type	Surface Mount
Temperature Range - Operating	-40°C ~ 85°C
Package / Case	96-SMD Module
Base Product Number	SARA-R422
Standard Package	250
MSL Level	4 (72 Hours)
REACH Status	REACH Unaffected
ECCN	5A992C SC
HTSUS	8517.62.0090
Win Source Part Number	1341212-SARA-R422M8S-00B
Ultra Librarian 3D Model	Ultra Librarian SARA-R422M8S-00B CAD Model

Alternative Products

Description

The SARA-R422M8S-00B is an RF transceiver module manufactured by U-Blox.

Manufacturer: U-Blox
Frequency Range: 700MHz to 2.1GHz
Protocol: 4G LTE CAT M1/NB-IoT
Data Rate: 1.119Mbps
Antenna Type: Castellated
Power Output: 33dBm
Popularity: Medium
