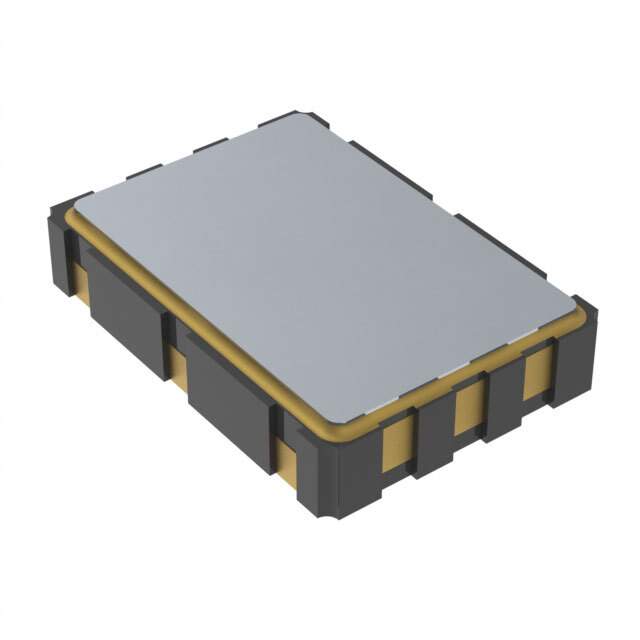

The 530BC156M250DG is a crystal oscillator from Skyworks Solutions Inc. These oscillators are used to provide a stable clock signal for a variety of electronic applications. Crystal oscillators offer a high degree of frequency stability, making them suitable for applications requiring precise timing.

Applications:

• Clock sources for microprocessors and microcontrollers.
• Timing references in communication systems (e.g., networking equipment, wireless devices).
• Frequency synthesizers and signal generators.
• Instrumentation and measurement equipment.
• Digital audio and video processing.

Features:

• Crystal-controlled stability.
• Compact package size.
• Low jitter performance.
• Surface mount technology (SMT) compatibility.
• Operating Frequency: 156.25 MHz.
• Supply Voltage: Typically 3.3V or 5V (Consult datasheet for specific voltage).
• Output Signal: CMOS.

Benefits:

• Precise and stable clock signal ensures reliable system operation.
• Small form factor allows for high-density circuit designs.
• Low jitter minimizes timing errors and improves signal integrity.
• Easy integration into automated assembly processes due to SMT compatibility.
• Reduces overall system cost by providing a highly accurate and reliable clock source.

Additional Details:

The 530BC156M250DG typically utilizes a quartz crystal resonator to generate its output frequency. The oscillator circuit incorporates active components to sustain oscillation and buffer the crystal output to provide a clean and stable clock signal. The datasheet specifies parameters such as frequency tolerance, frequency stability over temperature, supply voltage range, output voltage levels, and current consumption. Careful consideration of these parameters is necessary for proper integration into the target application. Proper decoupling and termination techniques should be employed to minimize noise and ensure optimal performance. The 530BC156M250DG is often used in applications requiring a stable and accurate clock source, such as networking equipment, computing platforms, and communication devices. Detailed specifications, including frequency stability, operating temperature range, and supply voltage requirements, are available in the product datasheet from Skyworks Solutions Inc.
