Same model may have multiple batches, images only for reference.

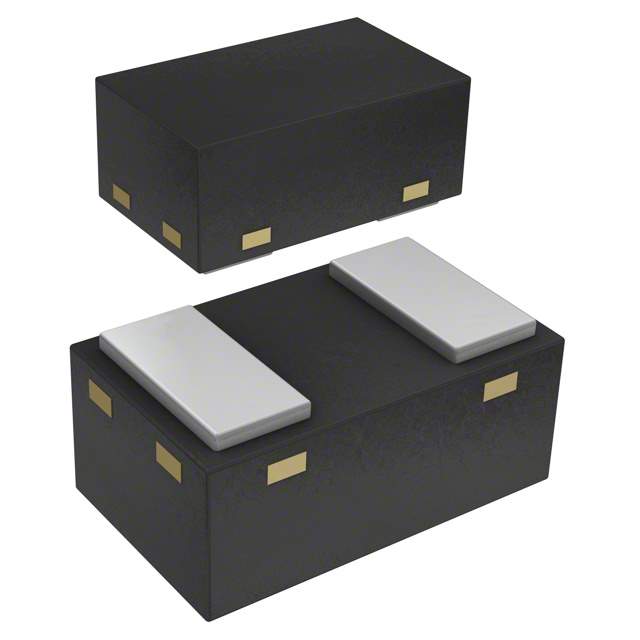

SMV2201-040LF Real Image
Same model may have multiple batches, images only for reference.

SMV2201-040LF

Part No SMV2201-040LF
Manufacturer Skyworks Solutions Inc.
Catalog Variable Capacitance Diodes (Varicaps, Varactors)
Description DIODE TUNING VARACTOR 0402
Datasheet
SMV2201-040LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Skyworks Solutions Inc.
Packaging Reel - TR
Status Active
Voltage - Peak Reverse (Max) 22V
Diode Type Single
Q @ Vr, F 500 @ 4V, 50MHz
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting SMD (SMT)
Case / Package 0402 (1005 Metric)
Win Source Part Number 1098686-SMV2201-040LF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SMV2201-040LF CAD Model

Description

The SMV2201-040LF is a high-frequency surface-mount diode from Skyworks Solutions Inc.

  • Features: low forward voltage and capacitance
  • Suitable for: high-frequency applications such as mixers and detectors
  • Packaging: reel
  • Operating at: wide temperature range
