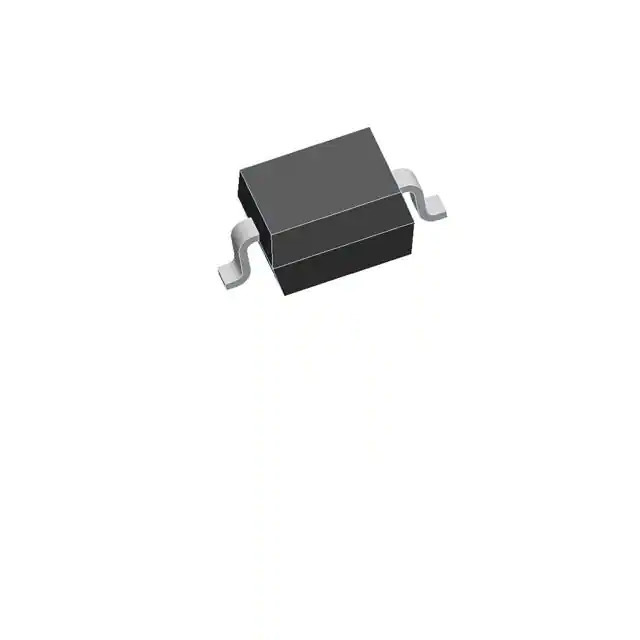

SD05LC SMC Diode Solutions
Same model may have multiple batches, images only for reference.

SD05LC

Part No SD05LC
Manufacturer SMC Diode Solutions
Catalog TVS - Diodes
Description TVS DIODE 5VWM 18.3VC SOD323 / 18.3V Clamp 17A (8/20µs) Ipp Tvs Diode Surface Mount SOD-323
Datasheet
SD05LC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr SMC Diode Solutions
Series SDxxLC
Package Tape & Reel
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5V (Max)
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Max) @ Ipp 18.3V
Current - Peak Pulse (10/1000µs) 17A (8/20µs)
Power - Peak Pulse 350W
Power Line Protection Yes
Applications Ethernet, USB
Capacitance @ Frequency 5pF @ 1MHz (Max)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case SC-76, SOD-323
Supplier Device Package SOD-323
Base Product Number SD05
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1379741-SD05LC
Ultra Librarian 3D Model Ultra Librarian SD05LC CAD Model

Description

The SD05LC is a TVS diode from SMC Diode Solutions.

  • Type: Zener Diode
  • Reverse Standoff Voltage: 5V
  • Breakdown Voltage: 6V
  • Mounting Type: Surface Mount
  • Package: SC-76, SOD-323
  • Clamping Voltage: 18.3V
  • Peak Pulse Current: 17A
  • Power Rating: 350W
  • Capacitance: 5pF @ 1MHz
  • Protection: Power Line
  • Operating Temperature: -55°C to 150°C
