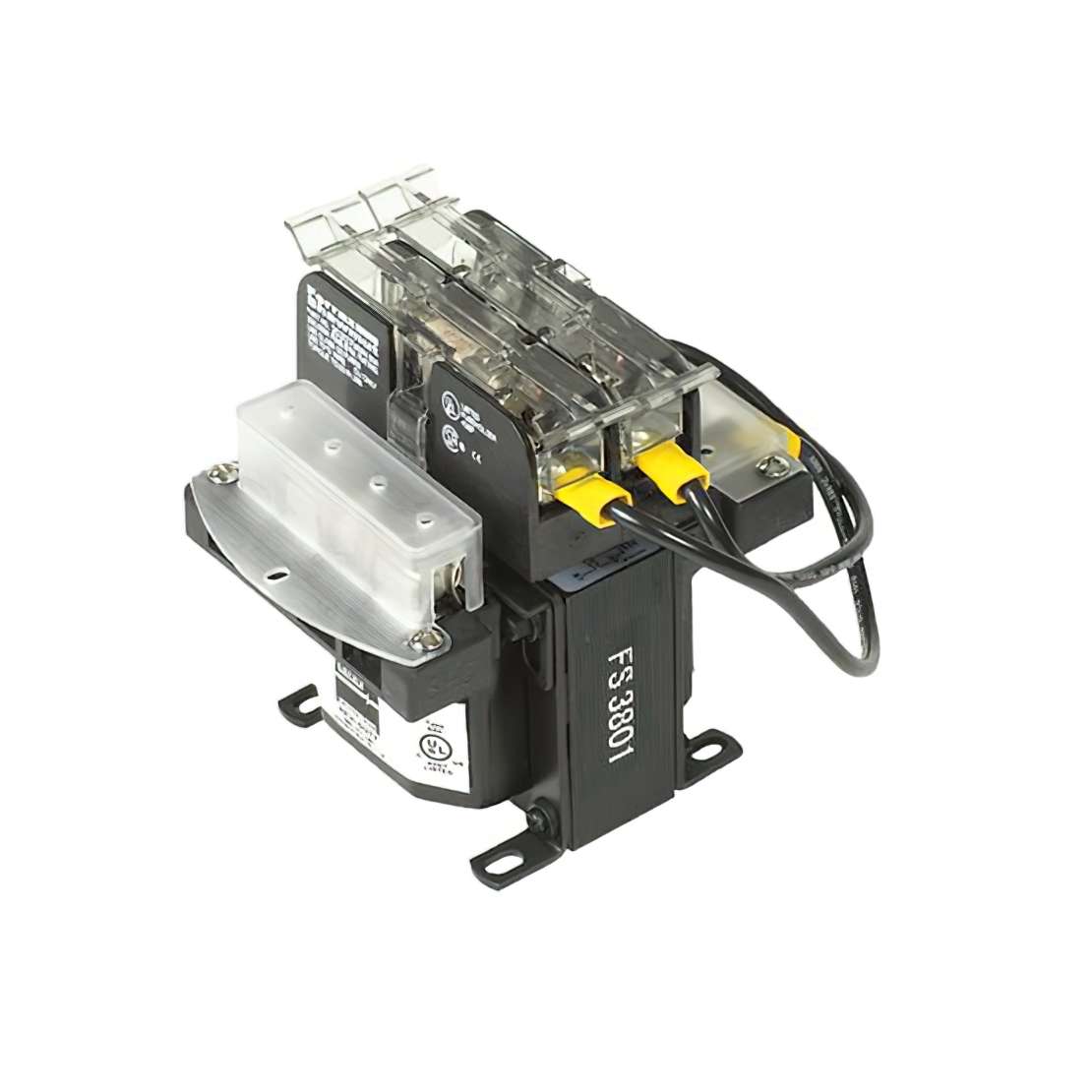

E500TH SolaHD – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Type Laminated Core
Primary Winding(s) Single, Multiple Taps
Secondary Winding(s) Dual
Center Tap No
Power - Max 500VA
Mounting Type Chassis Mount
Termination Style Solder, Quick Connect
Size / Dimension 176.00mm L x 162.10mm W
Height - Seated (Max) 141.20mm
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1545139-E500TH
Ultra Librarian 3D Model Ultra Librarian E500TH CAD Model
