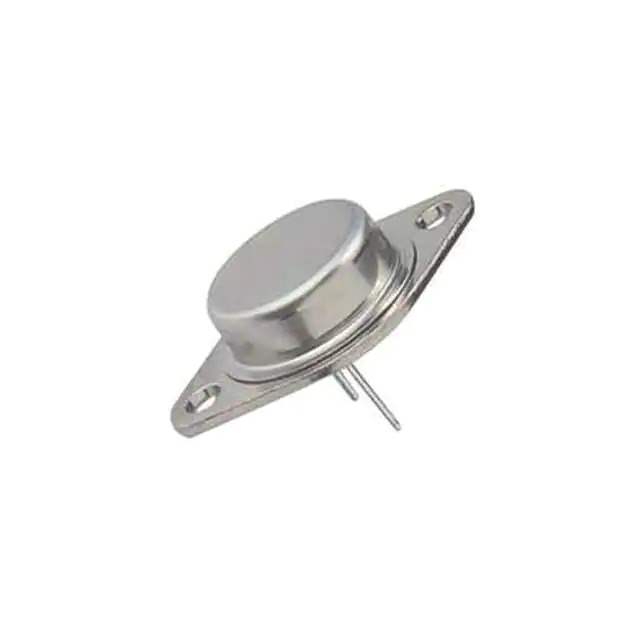

MJ15025 Real Image
Same model may have multiple batches, images only for reference.

MJ15025

Part No MJ15025
Manufacturer Solid State Inc.
Catalog Transistors (BJT) - Single
Description TRANS PNP 250V 16A TO3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Single Bipolar Transistors
Mfr Solid State Inc.
Package Bulk
Product Status Active
Transistor Type PNP
Current - Collector (Ic) (Max) 16 A
Voltage - Collector Emitter Breakdown (Max) 250 V
Vce Saturation (Max) @ Ib, Ic 4V @ 3.2A, 16A
Current - Collector Cutoff (Max) 500µA
DC Current Gain (hFE) (Min) @ Ic, Vce 15 @ 8A, 4V
Power - Max 250 W
Frequency - Transition 4MHz
Temperature Range - Operating 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-204AA, TO-3
Supplier Device Package TO-3
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 640903-MJ15025
Ultra Librarian 3D Model Ultra Librarian MJ15025 CAD Model

Description

The 640903-MJ15025 is a bipolar transistor used in discrete semiconductor products.

  • Maximum Power Rating: 250W
  • Maximum Collector-Emitter Breakdown Voltage: 250V
  • Maximum Collector Current (Ic): 16A
  • Transistor Type: PNP
  • Vce Saturation: 4V @ 3.2A, 16A
  • Maximum Collector Cutoff Current: 500μA
  • DC Current Gain (hFE): 15 @ 8A, 4V
  • Transition Frequency: 4MHz
  • Operating Temperature: 150°C (TJ)
