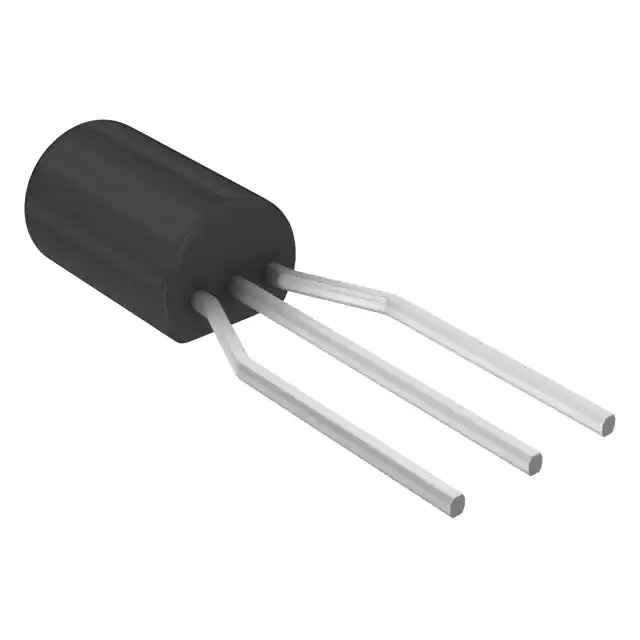

ON Semiconductor MPSW45A Darlington Transistor

The ON Semiconductor MPSW45A is a robust bipolar Darlington transistor designed to meet a wide range of high-power amplification and switching applications. This versatile NPN transistor is a reliable component for designers and engineers looking to enhance their electronic circuits with a component that offers high gain and high current handling capabilities.

Key Features

• High Collector-Emitter Voltage: With a VCEO of 50V, the MPSW45A can handle moderate voltage levels, making it suitable for a variety of circuits.
• High Collector Current: It has a continuous collector current rating of 1A, which allows it to drive larger loads.
• High Gain Performance: The Darlington configuration ensures a high current gain, typically around 1000, which means that the transistor can be driven by a very small base current.
• Robust Power Handling: Its power dissipation is 1.5W, providing a good balance between size and power handling.
• Wide Operating Temperature Range: The MPSW45A operates within a temperature range of -55°C to +150°C, ensuring stability and reliability across diverse environmental conditions.

Applications

The MPSW45A is designed for general-purpose amplification and high-speed switching applications. Its high power and current handling capabilities make it an excellent choice for:

• Linear amplifiers
• Switching regulators
• Motor controls
• Power supplies
• Relay drivers

Reliability and Quality

ON Semiconductor is known for its commitment to quality and reliability, and the MPSW45A is no exception. This component is manufactured with ON Semiconductor's high standards, ensuring that it meets the rigorous demands of industrial and commercial applications. Whether you are designing a new circuit or replacing a component in an existing system, the MPSW45A is a choice that offers peace of mind with its performance and durability.

For detailed specifications and application notes, designers are encouraged to consult the MPSW45A datasheet provided by ON Semiconductor.
