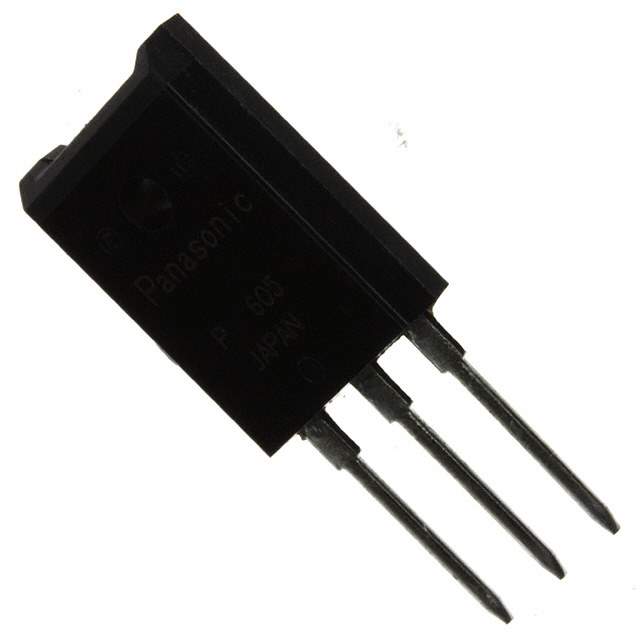

The 2SB1156 is a silicon PNP epitaxial transistor manufactured by Panasonic. It is designed for use in low-frequency power amplifier and switching applications. This transistor is characterized by its relatively high collector current and low saturation voltage.

Applications:

• Low-frequency power amplifiers
• Switching regulators
• DC-DC converters
• Motor drivers
• General-purpose switching

Features:

• High collector current: Capable of handling significant load currents.
• Low saturation voltage: Reduces power dissipation in switching applications.
• High DC current gain (hFE): Provides good amplification characteristics.
• Complementary to NPN transistor 2SD1686: Facilitates symmetrical circuit designs.
• Compact package: Allows for space-saving designs.

Benefits:

• Efficient power amplification: High current gain and low saturation voltage enhance amplifier performance.
• Reduced power loss: Low saturation voltage minimizes power dissipation in switching circuits.
• Simplified circuit design: Complementary NPN transistor simplifies push-pull configurations.
• Compact and reliable: Small package size and Panasonic's quality standards ensure reliable operation.
• Versatile applications: Suitable for a wide range of low-frequency power and switching applications.

Additional Details:

The 2SB1156 is typically available in a TO-251 or similar package. Key specifications include a collector-emitter voltage (VCEO) of -50V, a collector current (IC) of -3A, and a collector power dissipation (PC) of 10W. The DC current gain (hFE) is typically within a specified range. It is essential to refer to the manufacturer's datasheet for comprehensive electrical characteristics, application notes, and thermal considerations to ensure proper and safe operation. This transistor is designed for applications requiring efficient power handling in low-frequency circuits.
