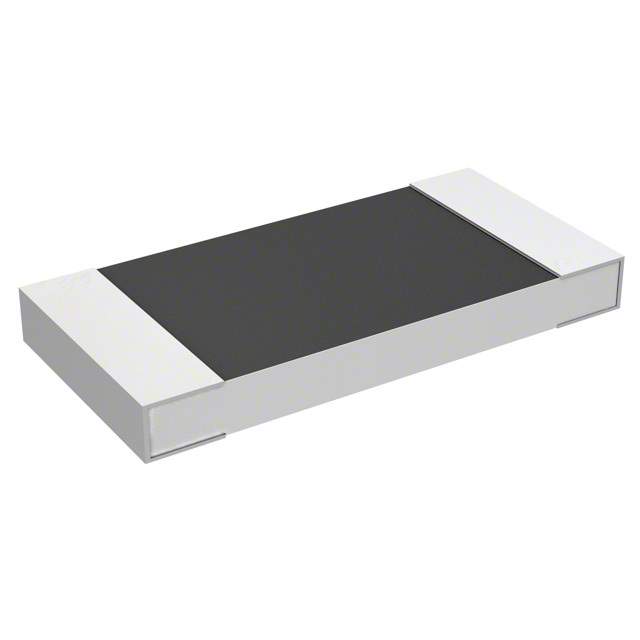

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Stackpole Electronics Inc
Packaging Reel
Resistance 100 mOhms
Tolerance ±1%
Power (Watts) 1W
Composition Thick Film
Features Current Sense
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Manufacturer Package 2010
Supplier Device Package 2010
Dimension 0.197" L x 0.100" W (5.00mm x 2.54mm)
Height - Seated (Maximum) 0.026" (0.65mm)
Number of Terminations 2
Manufacturer Pack Quantity 4,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804672-CSR2010FTR100
Ultra Librarian 3D Model Ultra Librarian CSR2010FTR100 CAD Model

Description

The Stackpole Electronics Inc 804672-CSR2010FTR100 is a medium-popularity electronic component that features current sense.

  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Power: 1W
  • Composition: Thick Film
  • Terminations: Two
  • Resistance: 100 mOhms
  • Supplier Device Package: 2010
  • Temperature Range: -55°C to 155°C
  • Dimension: 0.197" L x 0.100" W (5.00mm x 2.54mm)
  • Height Seated (Maximum): 0.026" (0.65mm)
