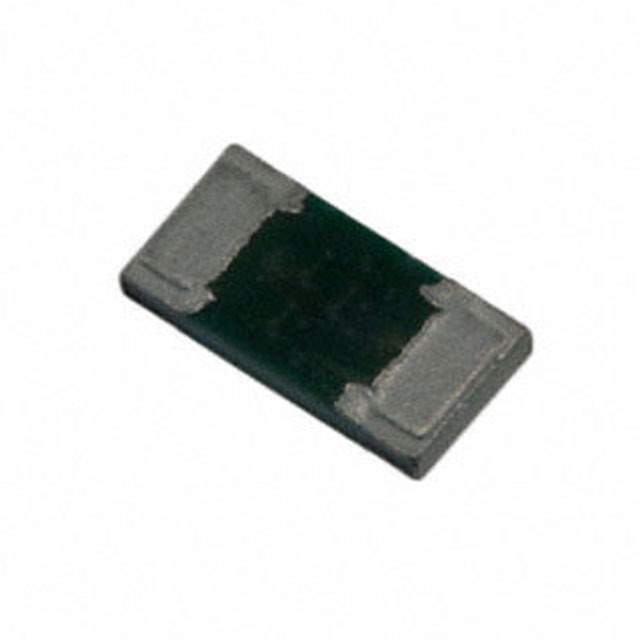

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Resistors
Manufacturer Stackpole Electronics Inc.
Packaging Reel - TR
Status Active
Resistance (Ohms) 0.008
Tolerance ±1%
Power (Watts) 1W
Composition Metal Foil
Features Current Sense, Moisture Resistant
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C to 125°C
Case / Package 2010
Height - Seated (Max) 0.037" (0.95mm)
Number of Terminations 2
Win Source Part Number 136814-CSRF2010FT8L00
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CSRF2010FT8L00 CAD Model

Description

Description

The CSRF2010FT8L00 is a current sensing resistor designed to offer precision current measurement in critical applications. With robust construction and high thermal stability, it is suitable for demanding environments.

Features and Benefits

  • High accuracy in current sensing with low resistance value.
  • Ultra-stable performance under varying temperature conditions.
  • Compact form factor, allowing easy integration into circuits.
  • High power handling capability, enhancing reliability.

Applications

  • Battery management systems.
  • DC-DC converters.
  • Power supply units.
  • Electric vehicles and charging stations.
