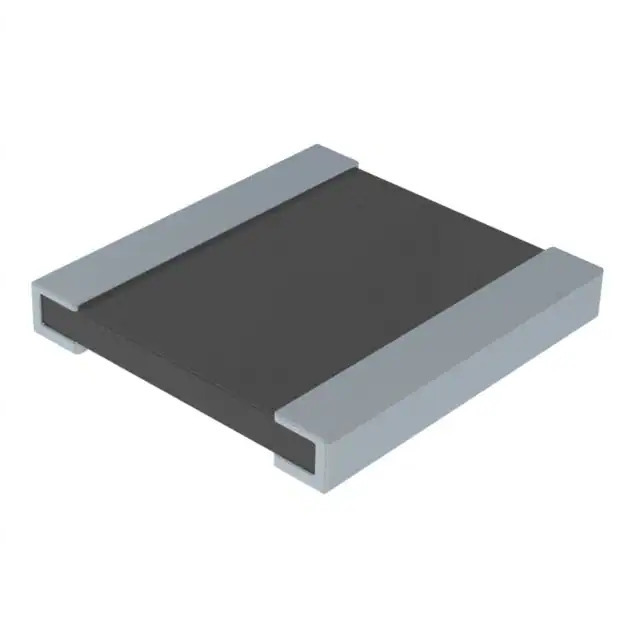

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Stackpole Electronics Inc
Series CSSH
Package Tape & Reel
Product Status Active
Resistance 10 MOhms
Tolerance ±1%
Power (Watts) 4W
Composition Metal Element
Features Automotive AEC-Q200, Current Sense
Temperature Coefficient ±15ppm/°C
Temperature Range - Operating -55°C ~ 225°C
Package / Case Wide 2827 (7067 Metric), 2728
Supplier Device Package 2728
Ratings AEC-Q200
Size / Dimension 0.264" L x 0.283" W (6.71mm x 7.19mm)
Height - Seated (Max) 0.049" (1.24mm)
Number of Terminations 2
Failure Rate -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1375427-CSSH2728FT10L0
Ultra Librarian 3D Model Ultra Librarian CSSH2728FT10L0 CAD Model

Description

The CSSH2728FT10L0 is a chip resistor designed for automotive applications. It has a resistance of 10 MOhms with a power rating of 4W. This resistor is part of the CSSH series from Stackpole Electronics Inc.

  • Series: CSSH
  • Resistance: 10 MOhms
  • Power (Watts): 4W
  • Package / Case: Wide 2827 (7067 Metric), 2728
  • Packaging: Tape & Reel (TR)
  • Operating Temperature: -55°C ~ 225°C
  • Tolerance: ±1%
  • Temperature Coefficient: ±15ppm/°C
  • Features: AEC-Q200
  • REACH Status: Unaffected
  • Element: Metal
  • Number of Terminations: 2
