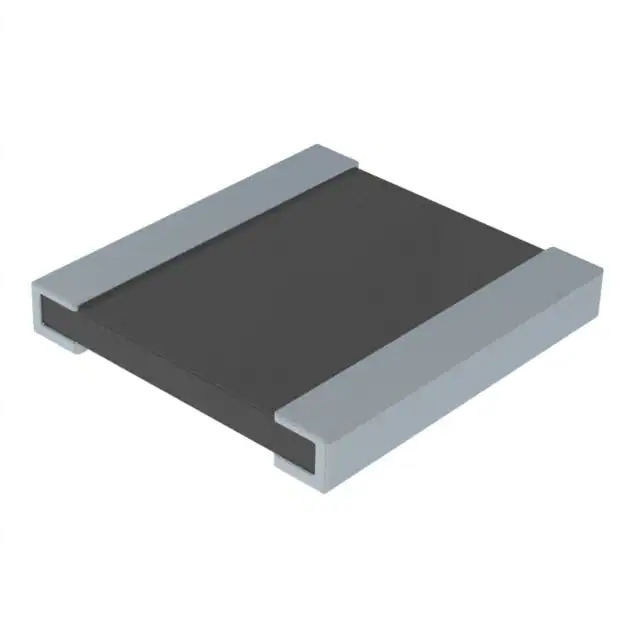

CSSH2728FT50L0 Stackpole Electronics Inc.
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Stackpole Electronics Inc
Series CSSH
Package Tape & Reel
Product Status Active
Resistance 50 mOhms
Tolerance ±1%
Power (Watts) 4W
Composition Metal Element
Features Automotive AEC-Q200, Current Sense
Temperature Coefficient ±15ppm/°C
Temperature Range - Operating -55°C ~ 225°C
Package / Case Wide 2827 (7067 Metric), 2728
Supplier Device Package 2728
Ratings AEC-Q200
Size / Dimension 0.264" L x 0.283" W (6.71mm x 7.19mm)
Height - Seated (Max) 0.049" (1.24mm)
Number of Terminations 2
Failure Rate -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1375291-CSSH2728FT50L0
Ultra Librarian 3D Model Ultra Librarian CSSH2728FT50L0 CAD Model

Description

The 1375291-CSSH2728FT50L0 is a surface mount chip resistor manufactured by Stackpole Electronics Inc.

  • Series: CSSH
  • Application: Automotive (AEC-Q200)
  • Package: Wide 2827 (7067 Metric), 2728
  • Packaging: Tape and Reel
  • Tolerance: ±1%
  • Resistance: 50 mOhms
  • Power Rating: 4W
  • Element: Metal
  • Terminations: 2
  • Operating Temperature Range: -55°C to 225°C
  • Seated Height: 0.049" (1.24mm)
  • REACH: Unaffected
  • ECCN: EAR99
  • Temperature Coefficient: ±15ppm/°C
  • Product Status: Active
  • Application: Current Sensing (Automotive)
