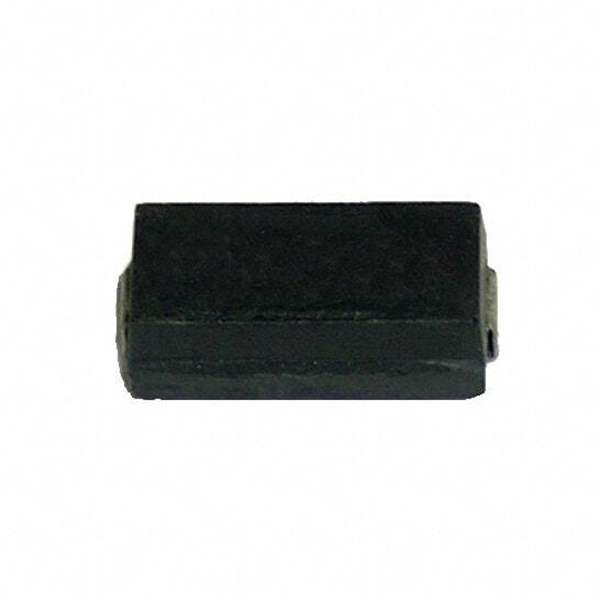

SM4124FT294R
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Resistors
Estimated Pruduction Lead Time 19 Weeks
Features 294 Ohms ±1% 2W Chip Resistor 4124 J-Lead Moisture Resistant, Pulse Withstanding Wirewound
Manufacturer Stackpole Electronics Inc.
Series SM
Package Reel - TR
Operating Temperature Range -55°C ~ 275°C
Package 4124 J-Lead
Case / Package 4124
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0080
Other Part Number SM 2 294 1% R, SM22941%R, SM22941%R-ND, SM2294FR, SM2294FR-ND
Quantity per package 800
Popularity High
Supply and Demand Status Balance
Win Source Part Number 934061-SM4124FT294R
Ultra Librarian 3D Model Ultra Librarian SM4124FT294R CAD Model

Description

The SM4124FT294R is a chip resistor manufactured by Stackpole Electronics Inc.

  • Series: SM
  • Operating Temperature: -55°C to 275°C
  • Features: 294 Ohms ±1% 2W, moisture resistant, and pulse withstanding
  • Packaging: reel - TR
  • Package: 800
  • ECCN: EAR99
  • HTSUS Code: 8533.21.0080
  • Estimated Production Lead Time: 19 weeks
  • REACH: unaffected
