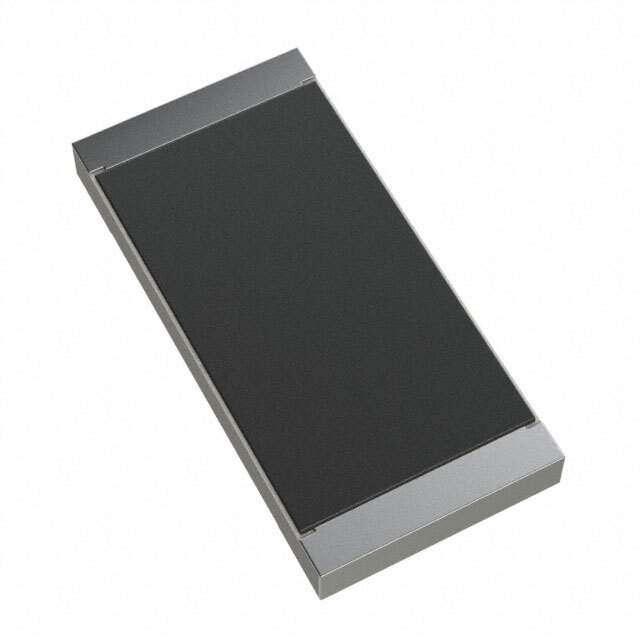

CSRF0603FT2L50-HP Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Stackpole Electronics Inc
Series CSRF
Package Tape & Reel
Resistance 2.5 MOhms
Tolerance ±1%
Power (Watts) 0.5W, 1/2W
Composition Metal Foil
Features Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 170°C
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Ratings AEC-Q200
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.028" (0.70mm)
Number of Terminations 2
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1349049-CSRF0603FT2L50-HP
Ultra Librarian 3D Model Ultra Librarian CSRF0603FT2L50-HP CAD Model

Description

The Stackpole Electronics Inc. CSRF0603FT2L50-HP is an automotive AEC-Q200, moisture-resistant chip resistor with a package of tape and reel.

  • Type: Current Sense Resistor
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Resistor Element: Metal Foil
  • Number of Terminations: 2
  • Resistance: 2.5 MOhms
  • Package/Case: 0603 (1608 Metric)
  • Supplier Device Package: 0603
  • Operating Temperature: -55°C to 170°C
  • Dimension: 0.063" L x 0.031" W (1.60mm x 0.80mm)
  • Power: 0.5W (1/2W)
