Same model may have multiple batches, images only for reference.

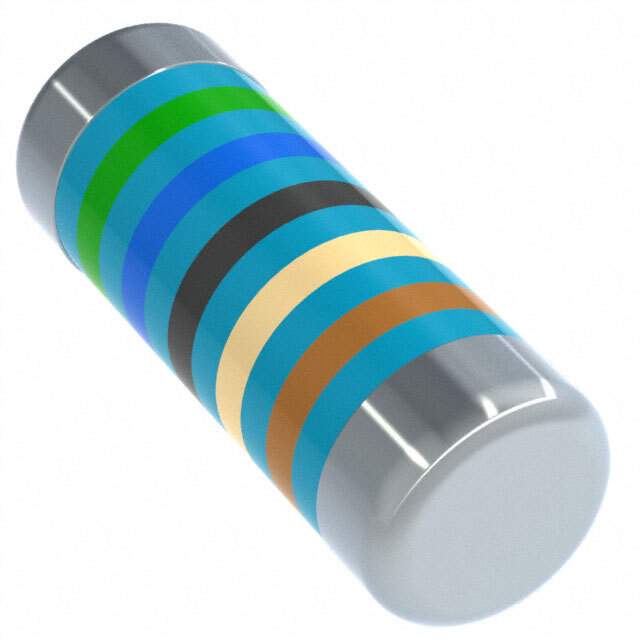

SMA-A0102FTDL56R Real Image
Same model may have multiple batches, images only for reference.

SMA-A0102FTDL56R

Part No SMA-A0102FTDL56R
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description RES 56 OHM 1% 0.3W MELF 0102  /  56 Ohms ±1% 0.3W Chip Resistor MELF, 0102 Automotive AEC-Q200 Metal Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series SMA-A
Package Tape & Reel
Resistance 56 Ohms
Tolerance ±1%
Power (Watts) 0.3W
Composition Metal Film
Features Automotive AEC-Q200
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case MELF, 0102
Supplier Device Package 0102
Ratings AEC-Q200
Dimension 0.043" Dia x 0.087" L (1.10mm x 2.20mm)
Number of Terminations 2
Base Product Number SMAA0102
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.21.0040
Other Names 7-2176314-8,A127001CT,A127001DKR,A127001TR
Standard Package 3,000
Win Source Part Number 1068429-SMA-A0102FTDL56R
Ultra Librarian 3D Model Ultra Librarian SMA-A0102FTDL56R CAD Model

Description

The SMA-A0102FTDL56R is a metal film chip resistor designed for surface mount applications.

  • Type: Metal Film Chip Resistor
  • Application: Surface Mount
  • Series: SMA-A
  • Package: MELF, 0102
  • Resistance: 56 Ohms
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Power Rating: 0.3W
  • Terminations: 2
  • Temperature Range: -55°C to 155°C
  • ECCN: EAR99
  • Manufacturer: TE Connectivity Passive Product
