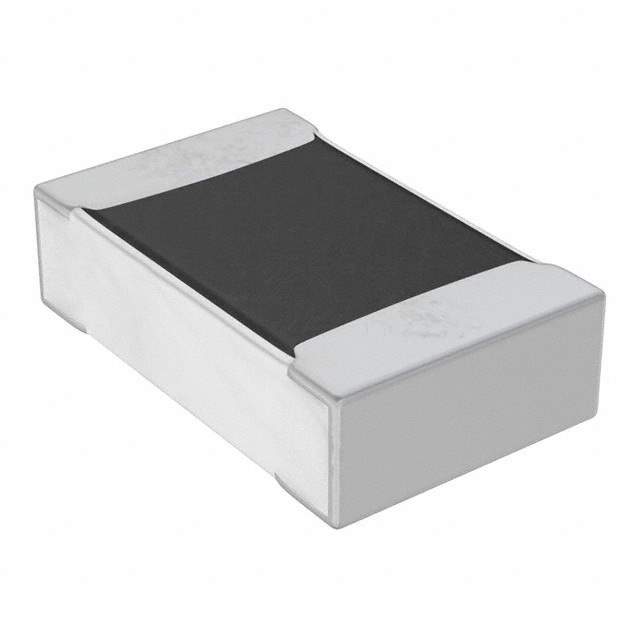

RNCP0805FTD12K4 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Stackpole Electronics Inc
Series RNCP
Package Tape & Reel
Resistance 12.4 kOhms
Tolerance ±1%
Power (Watts) 0.25W, 1/4W
Composition Thin Film
Features Anti-Sulfur
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.025" (0.65mm)
Number of Terminations 2
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1338545-RNCP0805FTD12K4
Ultra Librarian 3D Model Ultra Librarian RNCP0805FTD12K4 CAD Model

Description

The RNCP series chip resistor is a surface mount resistor that is commonly used in electronic devices.

  • Resistance: 12.4 kOhms
  • Power: 0.25W, 1/4W
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Composition: Thin Film
  • Package/Case: 0805 (2012 Metric)
  • Package: Tape & Reel
  • Standard Package: 5,000
  • Features: Anti-Sulfur
  • Height: 0.025" (0.65mm)
  • Operating Temperature: -55°C to 155°C
  • Manufacturer: Stackpole Electronics Inc
